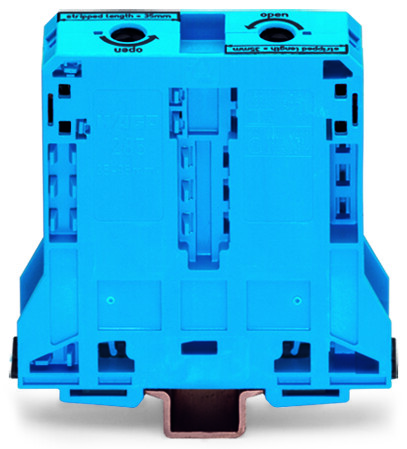

2-WIRE PASS-THROUGH CONNECTOR 95.0 BLUE

Name: 2-WIRE PASS-THROUGH CONNECTOR 95.0 BLUE
Brand: WAGO
SKU: 090267
Availability: InStock

18,36 € VAT incl.

VAT incl. (21%)

Part No: 285-194

Brand: WAGO

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

złączka 2-przewodowa 95 mm2 niebieska

Additional information

Weight	0,263 kg
Dimensions	100 × 50 × 150 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	1000V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	25mm2
Connectable conductor cross section fine-strand with cable end sleeve	25mm2
Connectable conductor cross section fine-strand without cable end sleeve	25mm2
Connectable conductor cross section multi-wired	25mm2
Material insulation body	Thermoplastic
Rated current In	232A
Brand	WAGO
SKU	090267
EAN	4044918452533
