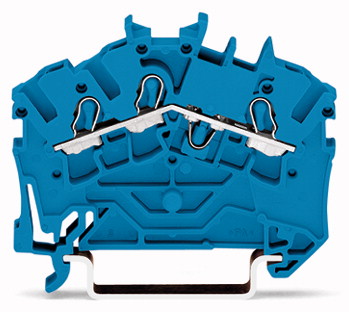

3-WIRE PASS-THROUGH CONNECTOR 2.5 BLUE

Name: 3-WIRE PASS-THROUGH CONNECTOR 2.5 BLUE
Brand: WAGO
SKU: 120286
Availability: InStock

1,39 € VAT incl.

VAT incl. (21%)

Part No: 2002-6304

Brand: WAGO

47 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

TOPJOBS złączka 3-przewodowa 2,5 mm2 niebieska

Additional information

Weight	0,006 kg

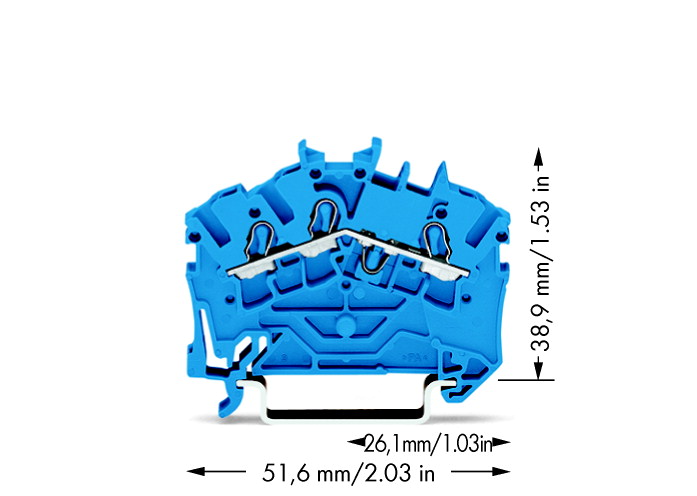

Dimensions	53 × 5 × 45 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	3
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Material insulation body	Thermoplastic
Rated current In	24A
Brand	WAGO
SKU	120286
EAN	4044918964944
