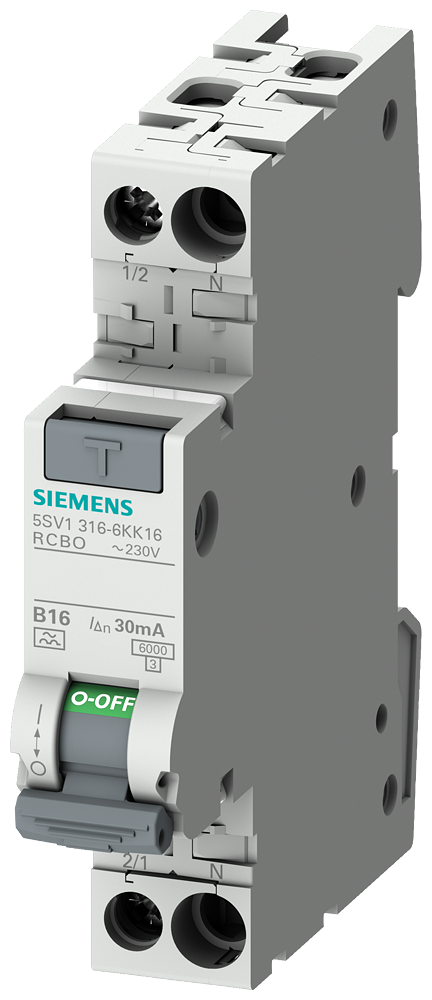

5SV1 B16A/ 30MA/AC 1P+N DIFFERENTIAL CURRENT SWITCH B16A 30MA 1M AC 6KA

Name: 5SV1 B16A/ 30MA/AC 1P+N DIFFERENTIAL CURRENT SWITCH B16A 30MA 1M AC 6KA
Brand: SIEMENS
SKU: 788945
Availability: InStock

43,14 € VAT incl.

VAT incl. (21%)

RRP price: 91,32 €

Part No: 5SV1316-0KK16

Brand: SIEMENS

21 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,12 kg
Dimensions	80 × 50 × 20 mm
Voltage type	AC
Built-in depth	70mm
Rated current	16A
Rated voltage	230V
Release characteristic	B
Rated insulation voltage Ui	253V
Rated fault current	0.03A
Leakage current type	AC
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to IEC 60947-2	15kA
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section multi-wired	0.75mm2
Number of poles (total)	2
Rated impulse withstand voltage Uimp	4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1	6kA
Disconnection characteristic	Undelayed
Rated short-circuit breaking capacity according to EN 61009	6kA
Brand	SIEMENS
SKU	788945
EAN	4001869557335
