BIT YKSY 7X 1.5 ŻO BLACK SIGNAL CABLE 0.6/1KV DRUM NUMBERED CONDUCTORS
3092,23 € VAT incl.
- VAT excl.
2555,56 € VAT excl.
VAT incl. (21%)
Part No:
EM8313
Brand:
BITNER
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Description

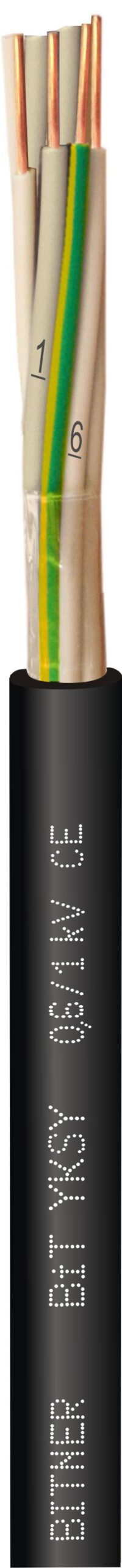

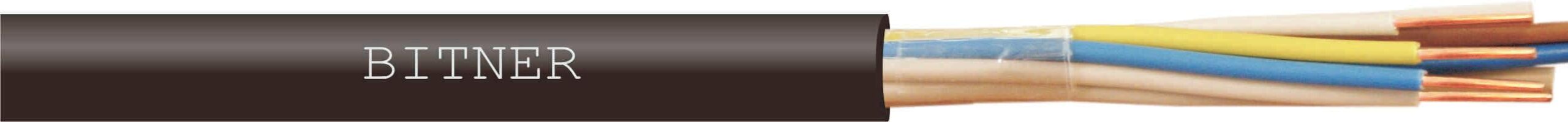

KABEL SYGNALIZACYJNY (STEROWNICZY) YKSY(ŻO) 7X1,5 0,6/1 KV
Additional information
| Weight | 229 kg |
|---|---|
| Nominal cross section conductor |
1.5mm2 |
| Core insulation material |
Polyvinyl chloride (PVC) |
| Core identification |
Colours and numbers |
| Weight |
260kg/km |
| Flame retardant |
According to IEC/EN 60332-1-2 |
| Armouring |
No |
| Lead sheath |
No |
| Drain wire |
No |
| Function maintenance |
No |
| Nominal voltage U |
1kV |
| Color of coating/insulation |
Black |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 1 = solid |
| Protective vein |
Yes |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
50°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
-40°C |
| Nominal voltage U0 |
0.6kV |
| Screen |
No |
| Number of cores |
7 |
| For underground installations |
Yes |
| Halogen-free EN 50267-2-2 |
No |
| Halogen-free according to IEC 60754-2 |
No |
| Strength (durability) of insulation |
No |
| Concentric conductor |
None |
| Low smoke emissions in accordance with IEC 61034-2 |
No |
| Maximum allowable core temperature |
70°C |
| Protective barrier |
None |
| Outer diameter approx. |
12.5mm |
| With protective conductor |
Yes |
| Low smoke (according to EN 61034-2) |
No |
| Oil-resistant (according to IEC 60811-404) |
Yes |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
125mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Conductor resistance at 20 °C |
12.1Ω/km |
| Core identification according to HD 308 S2 |
No |
| Suitable as medium-voltage cable |
No |
| Maintained function according to EN 50200 Annex E |
No |
| Fire resistance according to IEC 60332-1-2 |
Yes |
| Fire resistance according to IEC 60332-3-22 (cat. A) |
No |
| Fire resistance according to IEC 60332-3-23 (cat. B) |
No |
| Fire resistance according to IEC 60332-3-24 (cat. C) |
No |
| Fire resistance according to IEC 60332-3-25 (cat. D) |
No |
| Functional maintenance according to IEC 60331-1 |
None |
| Functional maintenance according to EN 50200 |
None |
| Brand | |
| SKU | 004889 |
| EAN | 5902956122872 |
