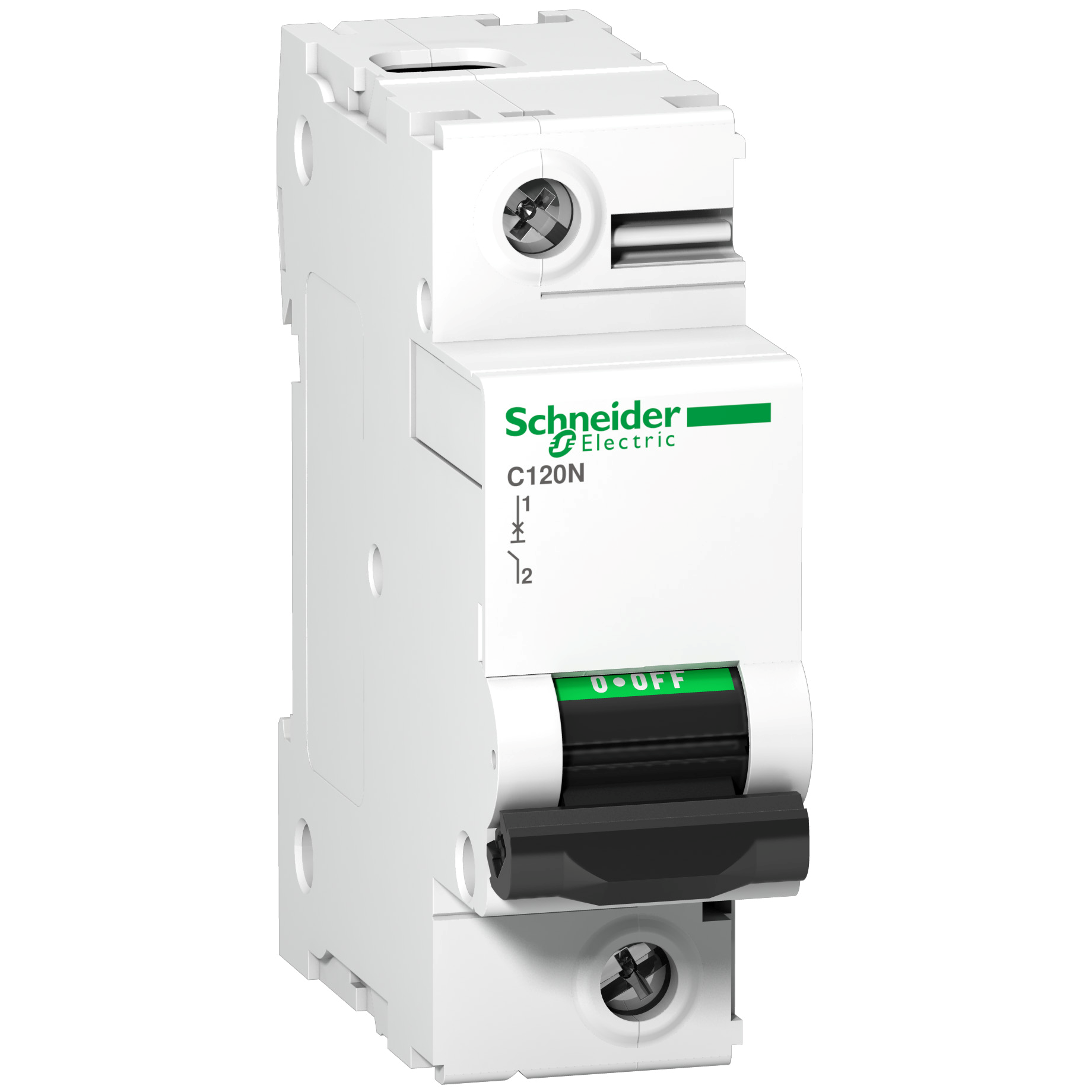

C120N C 63A 1P OVERCURRENT CIRCUIT BREAKER C 63A 1.5M 10KA ACTI 9

Name: C120N C 63A 1P OVERCURRENT CIRCUIT BREAKER C 63A 1.5M 10KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 603275
Availability: InStock

38,89 € VAT incl.

VAT incl. (21%)

Part No: A9N18356

Brand: SCHNEIDER ELECTRIC

12 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

C120N-C63APARATURA MODUŁOWA ACTI 9

Additional information

Weight	0,188 kg
Dimensions	85 × 75 × 27 mm
Voltage type	AC
Built-in depth	44mm
Rated current	63A
Rated voltage	415V
Frequency	50Hz
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	4
Pollution degree	3
Width in number of modular spacings	1.5
Power loss	3W
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1.5mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	3kA
Rated impulse withstand voltage Uimp	6kV
Brand	SCHNEIDER ELECTRIC
SKU	603275
EAN	3606480379307
