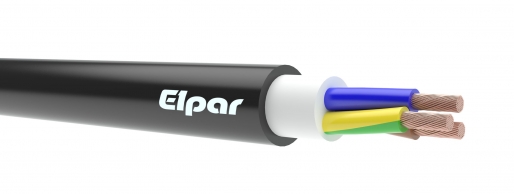

CABLE N2XH-O 0,6/1kV 1×70 RM MM2 (B2ca)

Name: CABLE N2XH-O 0,6/1kV 1x70 RM MM2 (B2ca)
Brand: ELPAR
SKU: 969282
Availability: InStock

10604,52 € VAT incl.

VAT incl. (21%)

RRP price: 13669,15 €

Part No: N2XH-O-1X70-RM-1KV (B2CA)

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	770 kg
Dimensions	900 × 900 × 560 mm
Nominal cross section conductor	70mm2
Material core insulation	Other
Core identification	Colour
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	14.5mm
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	600V
Number of cores	1
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	14.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1b
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	217.5mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	969282
EAN	5901854435060
