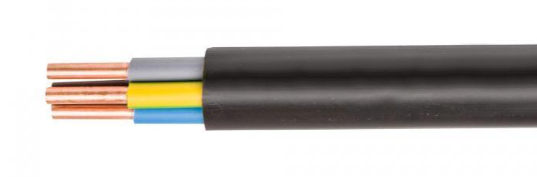

CABLE YKXSżo 0,6/1kV 5×25 RMC MM2

Name: CABLE YKXSżo 0,6/1kV 5x25 RMC MM2
Brand: ELPAR
SKU: 983965
Availability: InStock

32432,16 € VAT incl.

VAT incl. (21%)

Part No: YKXS-5X25-RMC(ŻO)-1KV

Brand: ELPAR

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Additional information

Nominal cross section conductor	25mm2
Core insulation material	Other
Core identification	Colour
Weight	1587kg/km
Lead sheath	No
Drain wire	Yes
Nominal voltage U	1000V
Color of coating/insulation	Black
Shape of conductor	Round
Diameter conductor	27.4mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Permissible ambient temperature of the cable during installation	-5°C
Permissible ambient temperature of the cable after installation (without vibration)	90°C
Number of pilot/reduced conductors	0
Core colour	Black
Nominal voltage U0	600V
Screen	No
Number of cores	5
For underground installations	Yes
Halogen-free according to IEC 60754-2	No
Low smoke emissions in accordance with IEC 61034-2	No
Maximum allowable core temperature	90°C
Protective barrier	None
Outer diameter approx.	25.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	304mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Conductor resistance at 20 °C	0.727Ω/km
Core identification according to HD 308 S2	Yes
Suitable as installation cable	No
Certified for shipboard application	No
Certified as airport lighting cable	No
Cable packaging	Drum
Commercial designation	YKXS
Brand	ELPAR
SKU	983965
EAN	5901854414867
