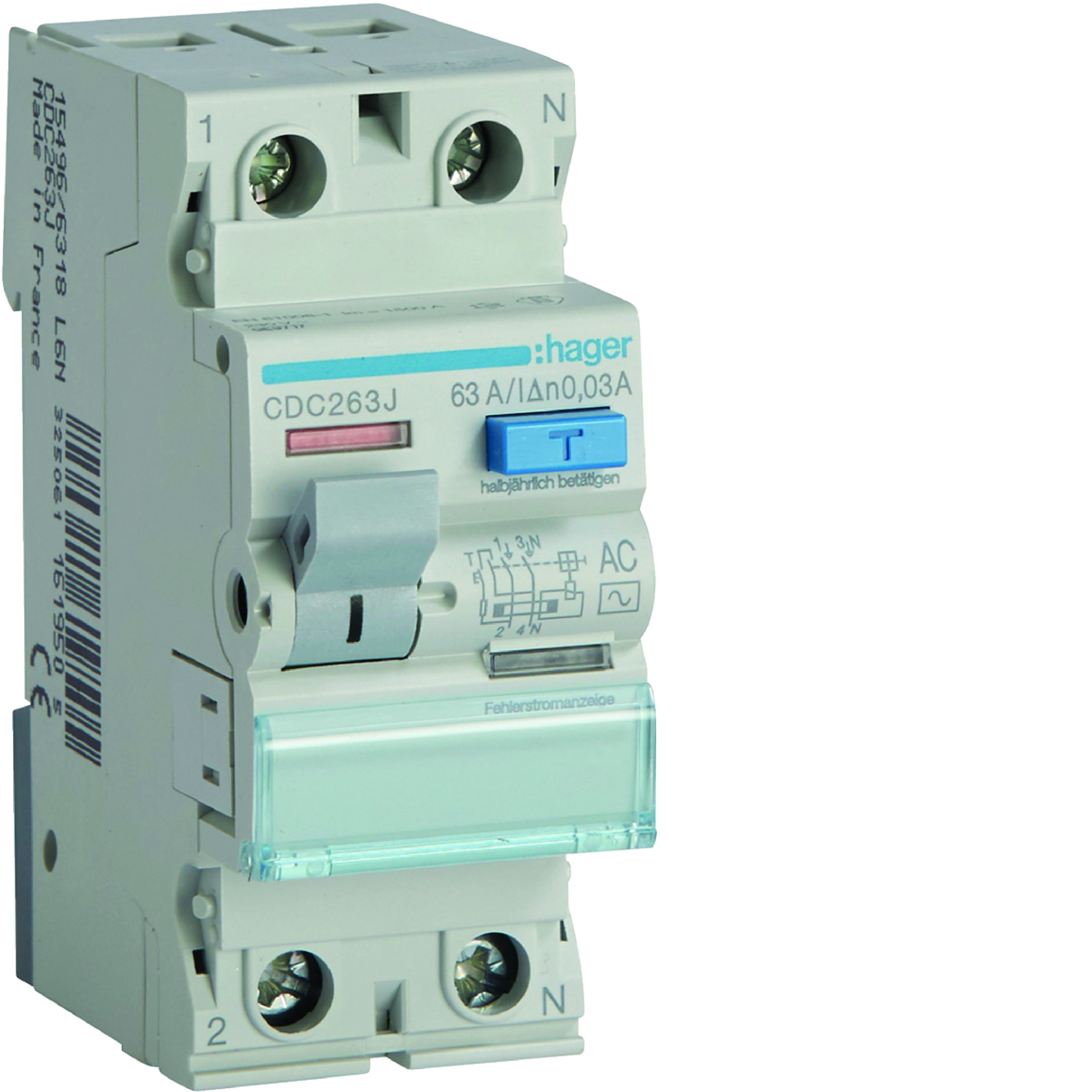

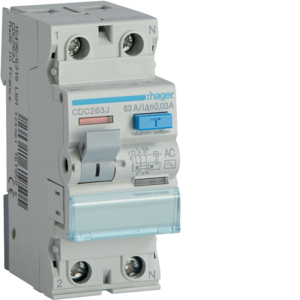

CDC263J 63A/ 30MA/AC 2P DIFFERENTIAL SWITCH 63A 30MA 2M AC 6KA

Name: CDC263J 63A/ 30MA/AC 2P DIFFERENTIAL SWITCH 63A 30MA 2M AC 6KA
Brand: HAGER
SKU: 553890
Availability: InStock

40,87 € VAT incl.

VAT incl. (21%)

RRP price: 103,89 €

Part No: CDC263J

Brand: HAGER

3 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

CDC263J RCCB WYŁĄCZNIK RÓŻNICOWOPRĄDOWY 2P 63A/30MA TYP AC

Additional information

Weight	0,202 kg
Dimensions	73 × 35 × 85 mm
Mounting method	DIN rail
Voltage type	AC
Built-in depth	70mm
Rated current	63A
Rated voltage	230V
Rated insulation voltage Ui	500V
Number of poles	2
Rated fault current	30A
Leakage current type	AC
Selective protection	No
Short-circuit breaking capacity (Icw)	6kA
Surge current capacity	0.25kA
Pollution degree	2
Width in number of modular spacings	2
Short-time delayed tripping	No
RAL-number (similar)	7005
Explosion-proof	No
Power loss	8.1W
Frequency	50 Hz
Degree of protection (IP)	IP20
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
With interlocking device	No
Ambient temperature during operating	-25°C
Additional equipment possible	Yes
Rated impulse withstand voltage Uimp	4kV
Brand	HAGER
SKU	553890
EAN	3250611619505
