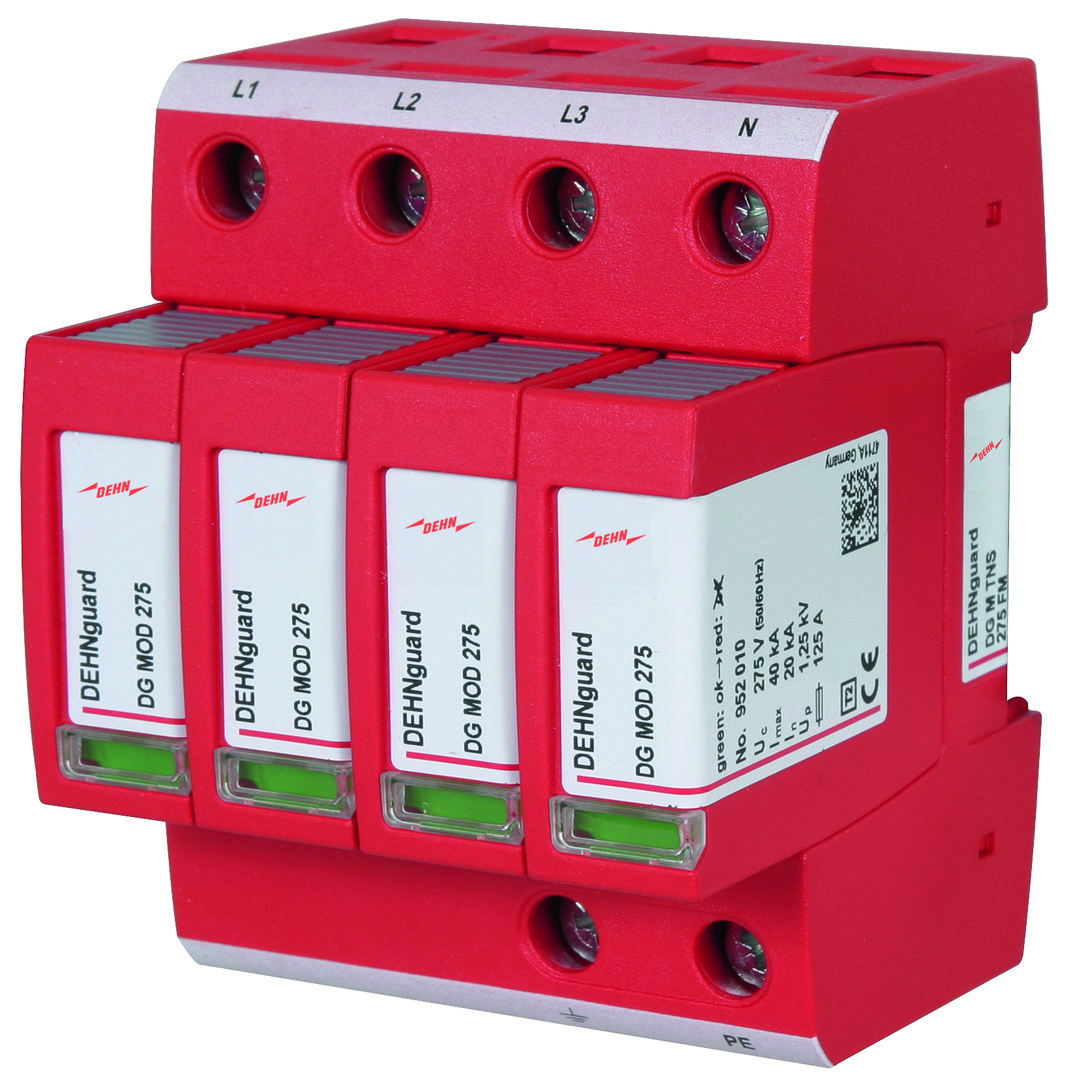

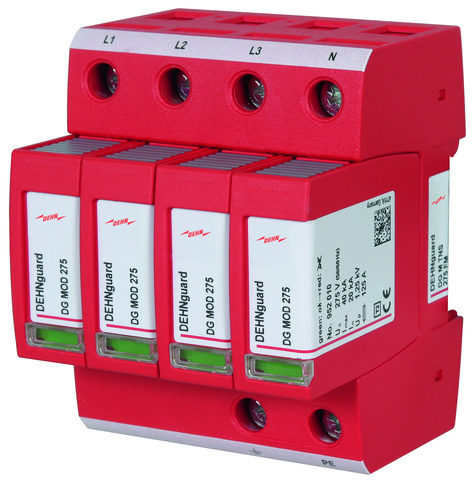

DEHNGUARD M TNS 275 FM SURGE ARRESTER,

Name: DEHNGUARD M TNS 275 FM SURGE ARRESTER,
Brand: DEHN
SKU: 121261
Availability: InStock

110,19 € VAT incl.

VAT incl. (21%)

Part No: 952405

Brand: DEHN

5 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,45 kg
Dimensions	70 × 95 × 75 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of conductors (without earthing)	4
Construction size	4 modular spacing
Voltage protection level	1.5kV
Max. continuous voltage AC	275V
Nominal discharge surge current (8/20)	20kA
Nominal voltage AC	230V
Signalling at the device	Optical
Degree of protection (IP)	IP20
Voltage protection level N-PE	1.5kV
Max. conductor cross section solid (solid, stranded)	35mm2
Max. conductor cross section flexible (fine-strand)	25mm2
Max. discharge surge current (8/20)	40kA
Short-circuit breaking capacity (Isccr)	50kA
Max. overcurrent protection device, parallel connection (fuse)	125A
Max. overcurrent protection device, series connection (fuse)	100A
Brand	DEHN
SKU	121261
EAN	4013364108462
