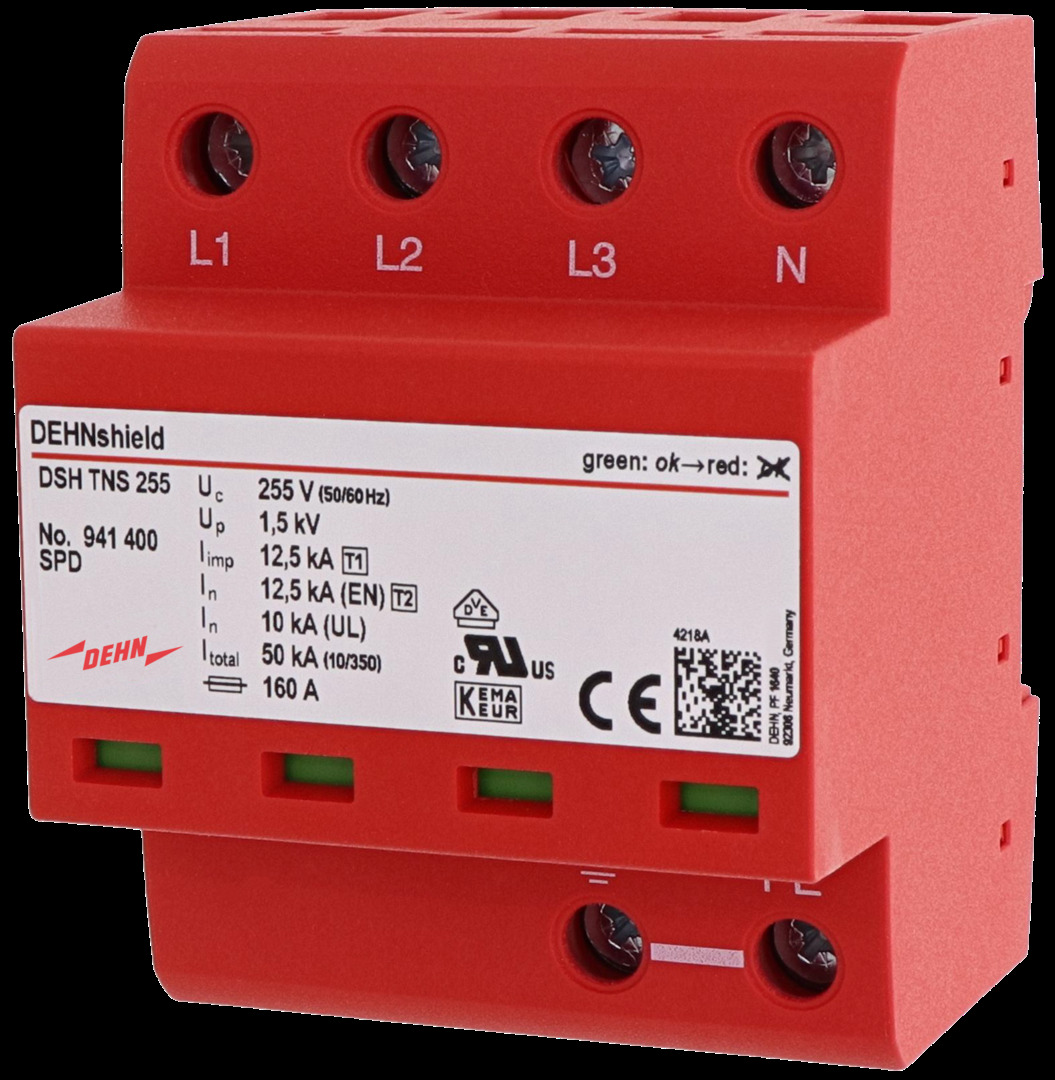

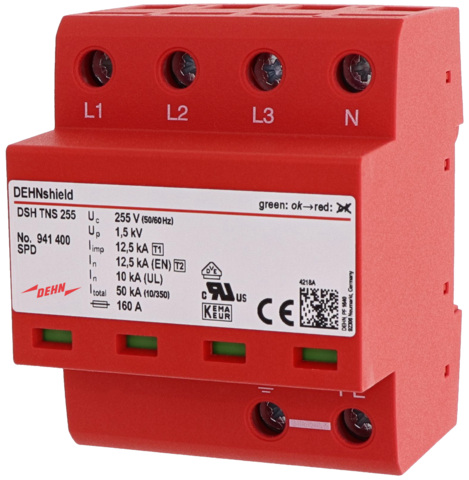

DEHNSHIELD DSH 255 OVERVOLTAGE ARRESTER T1+T2 B+C 4P 4M 12.5/50KA 1.5KV TNS

Name: DEHNSHIELD DSH 255 OVERVOLTAGE ARRESTER T1+T2 B+C 4P 4M 12.5/50KA 1.5KV TNS
Brand: DEHN
SKU: 159032
Availability: InStock

274,10 € VAT incl.

VAT incl. (21%)

Part No: 941400

Brand: DEHN

9 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,522 kg
Dimensions	118 × 92 × 96 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of poles	4
Construction size	4 modular spacing
Voltage protection level	1.5kV
Follow current extinguishing capability	25kA
Max. continuous voltage AC	255V
Nominal voltage AC	230V
Test class	Type 1 + 2
Signalling at the device	Optical
Degree of protection (IP)	IP20
Voltage protection level N-PE	1.5kV
Max. conductor cross section solid (solid, stranded)	35mm2
Max. conductor cross section flexible (fine-strand)	25mm2
Voltage protection level L-PE	1.5kV
Brand	DEHN
SKU	159032
EAN	4013364133563
