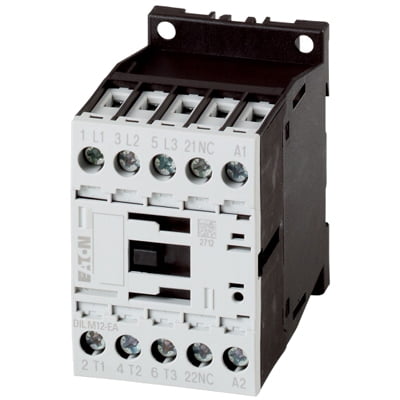

DILM 12-01-EA 12A 3Z 1R POWER CONTACTOR 12A 3Z 1R 5.5KW 230V AC SCREW TERMINALS

Name: DILM 12-01-EA 12A 3Z 1R POWER CONTACTOR 12A 3Z 1R 5.5KW 230V AC SCREW TERMINALS
Brand: EATON
SKU: 703439
Availability: InStock

43,06 € VAT incl.

VAT incl. (21%)

Part No: 190035

Brand: EATON

3 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

DILM12-01-EA(230V50HZ,240V60HZ) STYCZNIK,5,5KW/400V,STEROWANIE 230VAC

Additional information

Weight	0,252 kg
Dimensions	70 × 77 × 46 mm
Rated operation power at AC-3, 400 V	5.5kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-3, 400 V	12A
Rated operation current Ie at AC-1, 400 V	22A
Rated control supply voltage AC 50 Hz	230V
Rated control supply voltage AC 60 Hz	240V
Rated control supply voltage DC	0V
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	7A
Rated operation power at AC-4, 400 V	3kW
Rated operation power NEMA	7.4kW
Brand	EATON
SKU	703439
EAN	4015081880317
