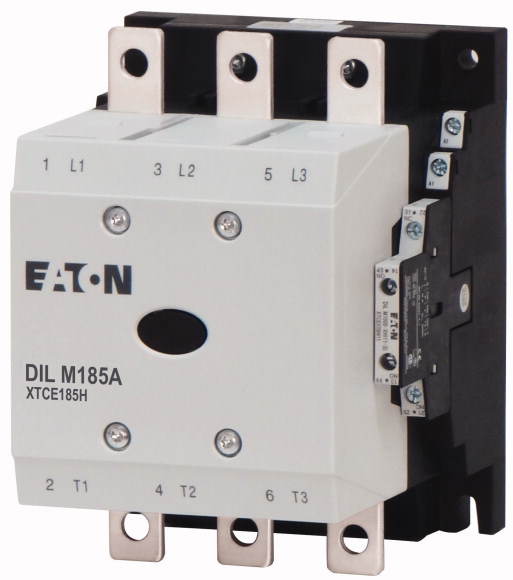

DILM185-22 185A 3Z 2Z+2R POWER CONTACTOR 90KW 500V AC SCREW TERMINALS

Name: DILM185-22 185A 3Z 2Z+2R POWER CONTACTOR 90KW 500V AC SCREW TERMINALS
Brand: EATON
SKU: 508427
Availability: InStock

133,73 € VAT incl.

VAT incl. (21%)

Part No: 139539

Brand: EATON

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

DILM185A/22(RAC500) STYCZNIK MOCY 185 A (90KW/400V), AC3

Additional information

Weight	2,5 kg
Dimensions	400 × 350 × 250 mm
Rated operation power at AC-3, 400 V	90kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Rated operation current Ie at AC-3, 400 V	185A
Rated operation current Ie at AC-1, 400 V	337A
Rated control supply voltage AC 50 Hz	480V
Rated control supply voltage AC 60 Hz	480V
Rated control supply voltage DC	0V
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	136A
Rated operation power at AC-4, 400 V	75kW
Rated operation power NEMA	93kW
Brand	EATON
SKU	508427
EAN	4015081363179
