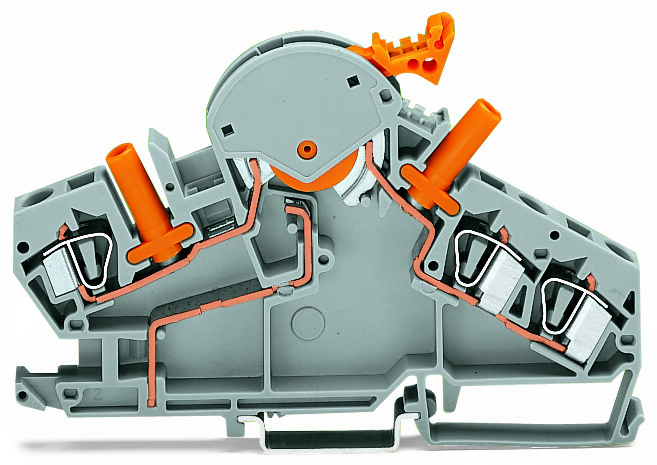

DISCONNECTING AND MEASURING CONNECTOR 6.0 FOR CURRENT TRANSFORMERS GRAY

Name: DISCONNECTING AND MEASURING CONNECTOR 6.0 FOR CURRENT TRANSFORMERS GRAY
Brand: WAGO
SKU: 077705
Availability: InStock

15,42 € VAT incl.

VAT incl. (21%)

Part No: 282-870

Brand: WAGO

51 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,046 kg
Dimensions	122 × 80 × 5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	500V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Type of slitting	Swivelling
Type of cross disconnection	None
Number of levels	1
Number of clamp positions per level	3
Connectable conductor cross section solid-core	0.2mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.2mm2
Connectable conductor cross section multi-wired	0.2mm2
Material insulation body	Thermoplastic
Rated current In	30A
Brand	WAGO
SKU	077705
EAN	4044918692861
