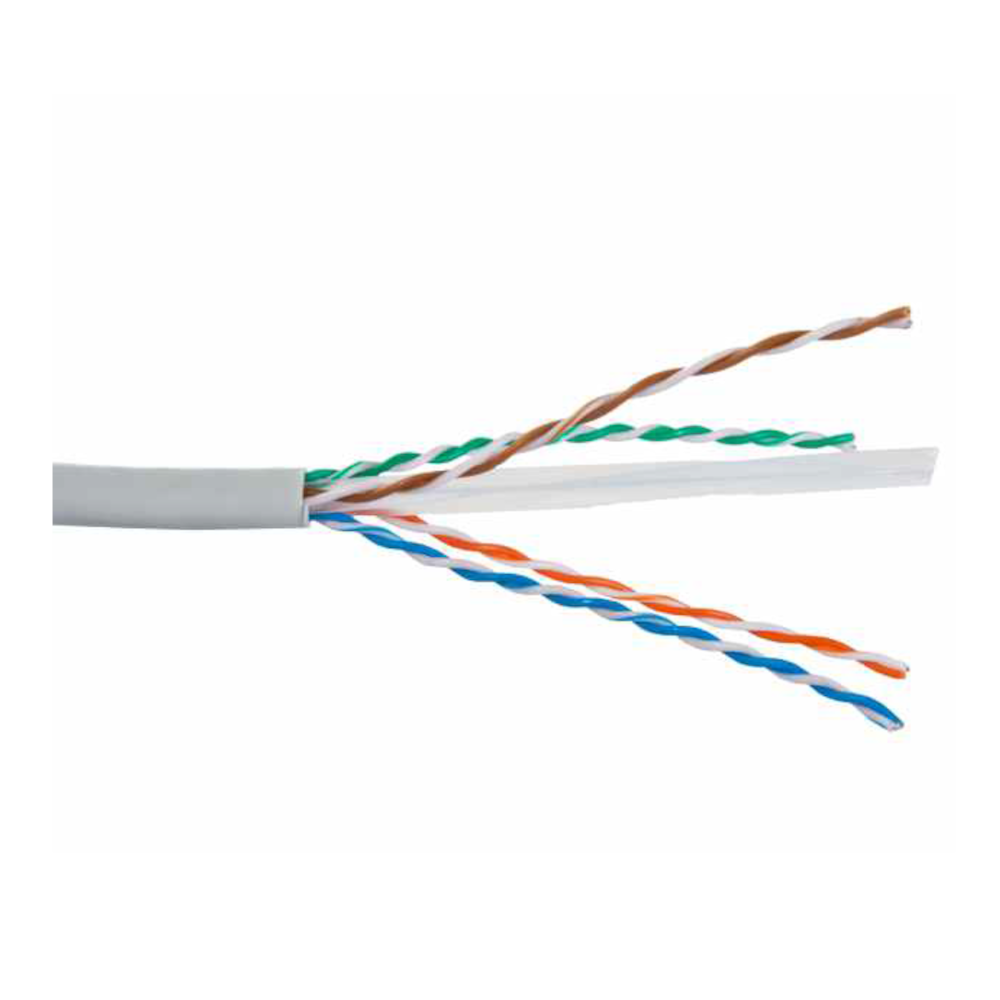

DOMNET CABLE U/UTP CAT 6 PVC 305M
536,82 € VAT incl.
- VAT excl.
443,65 € VAT excl.
VAT incl. (21%)
Part No:
DOM6UTP
Brand:
securityNET
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Weight | 11,93 kg |
|---|---|
| Dimensions | 600 × 600 × 200 mm |
| UV resistant |
No |
| Nominal cross section conductor |
0.25mm2 |
| Core identification |
Colour |
| Cable type |
U/UTP |
| Weight |
41kg/km |
| Drain wire |
No |
| Nominal voltage U |
100V |
| Stranding element |
Pairs |
| Category |
6 |
| Diameter conductor |
0.5mm |
| Conductor material |
Copper |
| Screen over stranding element |
None |
| Screen over stranding |
None |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Characteristic impedance |
100? |
| Conductor category |
Class 1 = solid |
| Armouring/reinforcement |
None |
| Number of stranding elements |
4 |
| Protective sheath |
Polyvinyl chloride (PVC) |
| Number of cores |
8 |
| Stranding |
None |
| Outer diameter approx. |
6mm |
| With rodent protection |
No |
| NVP value |
69% |
| Conductor surface |
Bare |
| Longitudinal water blocking cable |
No |
| Radial water blocking cable |
No |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| AWG size |
23 |
| Min. permitted bending radius, moving application with forced guidance |
60mm |
| Min. permitted bending radius, moving application/free movement |
60mm |
| Min. permitted bending radius, stationary application/permanent installation |
48mm |
| Specification core insulation |
Polyethylene (PE) |
| Specification material outer sheath |
Other |
| Duplex |
Yes |
| Material armouring |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
Yes |
| Suitable as telephone cable |
Yes |
| Suitable as computer data cable |
Yes |
| Suitable as signalling cable |
Yes |
| Certified for shipboard application |
No |
| Max. tensile strength during installation |
0.1kN |
| Segregation class according to EN 50174-2 |
B |
| Approved type of underground installation |
Other |
| Brand | |
| SKU | 958030 |
| EAN | 5904169100029 |
