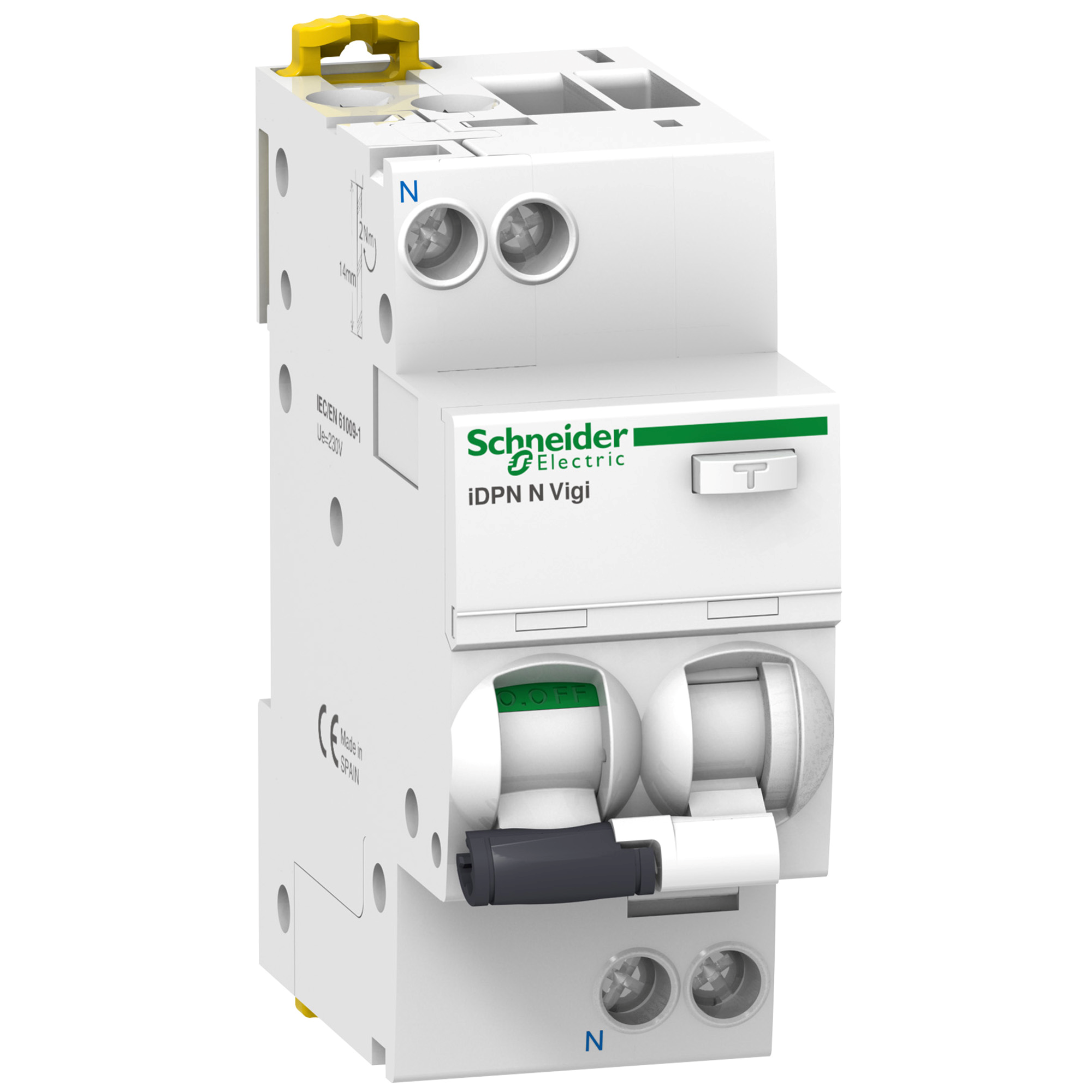

DPN N B20A/ 30MA/AC 1P+N DIFFERENTIAL CIRCUIT BREAKER B20A 30MA 2M AC 6KA ACTI 9

Name: DPN N B20A/ 30MA/AC 1P+N DIFFERENTIAL CIRCUIT BREAKER B20A 30MA 2M AC 6KA ACTI 9
Brand: SCHNEIDER ELECTRIC
SKU: 515133
Availability: InStock

66,89 € VAT incl.

VAT incl. (21%)

Part No: A9D55620

Brand: SCHNEIDER ELECTRIC

1 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

WYŁ.RÓŻN.DPN N VIGI 1P+N B 20A 30MA AC ROZDZIAŁ ENERGII: DO 160A I DO 630A

Additional information

Weight	0,2 kg
Dimensions	100 × 80 × 40 mm
Voltage type	AC
Built-in depth	44mm
Rated current	20A
Rated voltage	230V
Release characteristic	B
Rated insulation voltage Ui	400V
Rated fault current	0.03A
Leakage current type	AC
Surge current capacity	0.25kA
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	2
Frequency	50 Hz
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-5°C
Number of poles (total)	2
Rated impulse withstand voltage Uimp	4kV
Rated short-circuit breaking capacity Icn according to EN 61009-1	6kA
Disconnection characteristic	Other
Rated short-circuit breaking capacity according to EN 61009	6kA
Brand	SCHNEIDER ELECTRIC
SKU	515133
EAN	3606480472633
