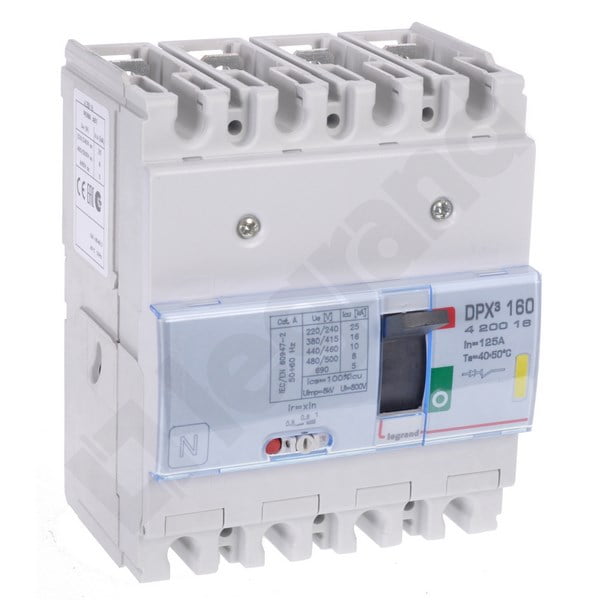

DPX3 160 125A 4P POWER SWITCH 16K 400V AC SCREW TERMINALS

Name: DPX3 160 125A 4P POWER SWITCH 16K 400V AC SCREW TERMINALS
Brand: LEGRAND
SKU: 505806
Availability: InStock

558,37 € VAT incl.

VAT incl. (21%)

Part No: 420016

Brand: LEGRAND

1 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

WYŁ. DPX3 160 4P 125A 16KA

Additional information

Weight	1,488 kg
Dimensions	185 × 125 × 110 mm
Number of auxiliary contacts as normally closed contact	1
Rated permanent current Iu	125A
Number of poles	4
Overload release current setting	100A
Number of auxiliary contacts as change-over contact	1
Rated voltage	220V
Degree of protection (IP)	IP30
Position of connection for main current circuit	Front side
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	16kA
Adjustment range short-term delayed short-circuit release	1250A
Adjustment range undelayed short-circuit release	1250A
Device construction	Built-in device fixed built-in technique
Brand	LEGRAND
SKU	505806
EAN	3245064200165
