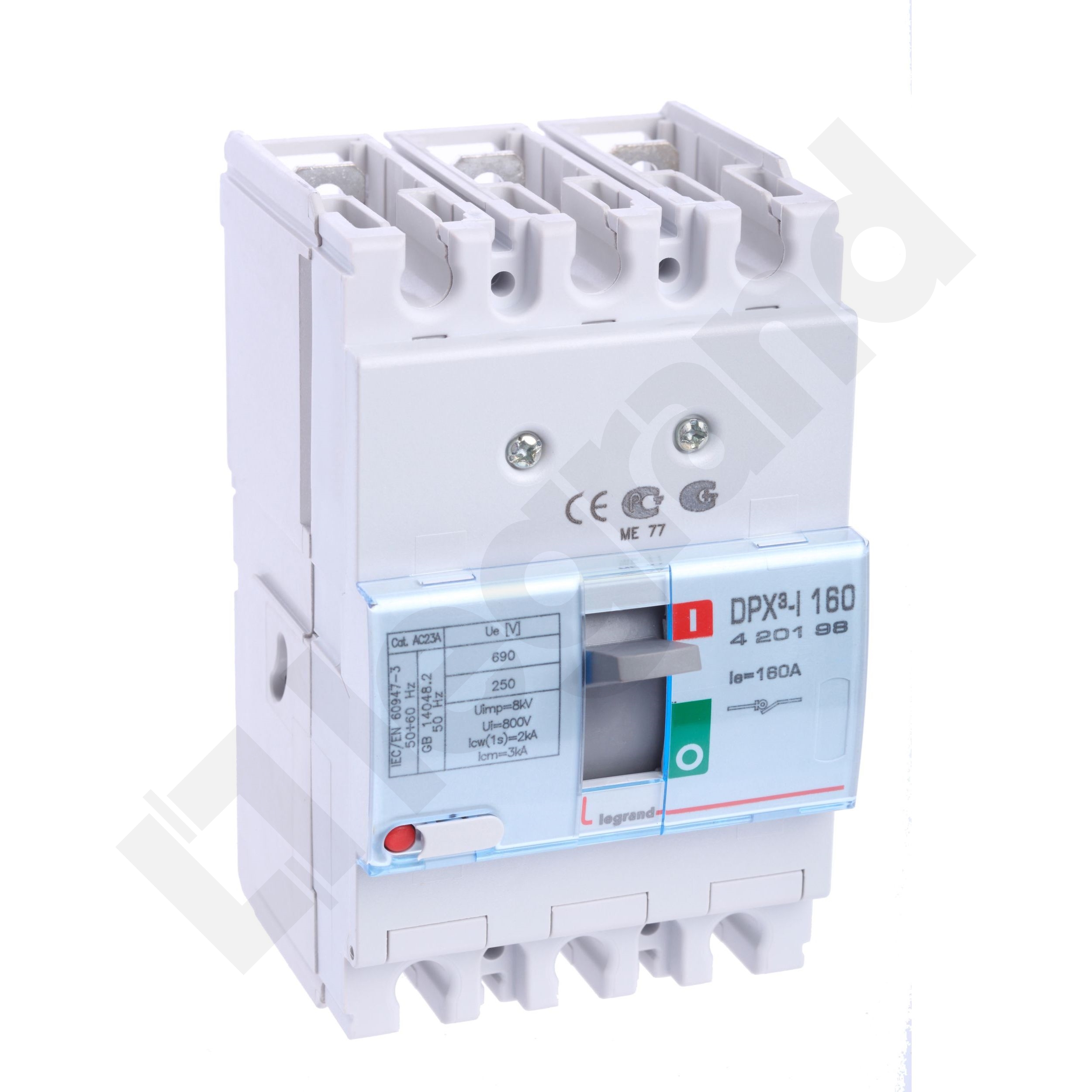

DPX3-I 160 160A 3P POWER SWITCH 160A 3P 690V AC SCREW TERMINALS

Name: DPX3-I 160 160A 3P POWER SWITCH 160A 3P 690V AC SCREW TERMINALS
Brand: LEGRAND
SKU: 518147
Availability: InStock

186,61 € VAT incl.

VAT incl. (21%)

RRP price: 400,68 €

Part No: 420198

Brand: LEGRAND

2 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	1,136 kg
Dimensions	185 × 110 × 110 mm
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Rated permanent current Iu	160A
Number of poles	3
Rated operating voltage	220V
Conditioned rated short-circuit current Iq	1.7kA
Degree of protection (IP), front side	IP30
Number of auxiliary contacts as change-over contact	1
Type of electrical connection of main circuit	Screw connection
Type of control element	Toggle
Rated operation power at AC-23, 400 V	64kW
Rated short-time withstand current lcw	1.7kA
Colour control element	Grey
Max. rated operation voltage Ue AC	690V
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	160A
Brand	LEGRAND
SKU	518147
EAN	3245064201988
