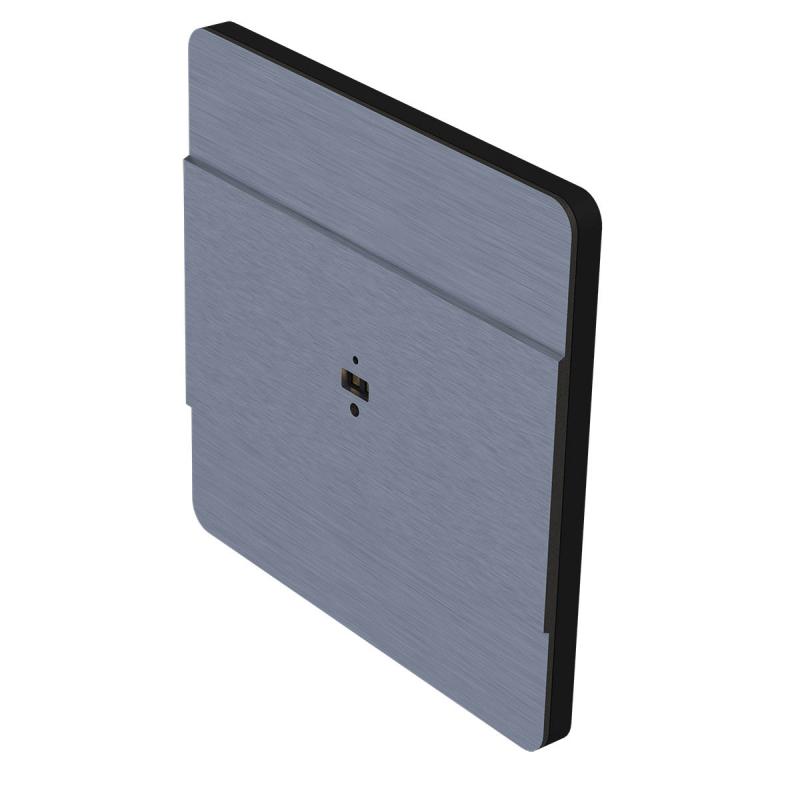

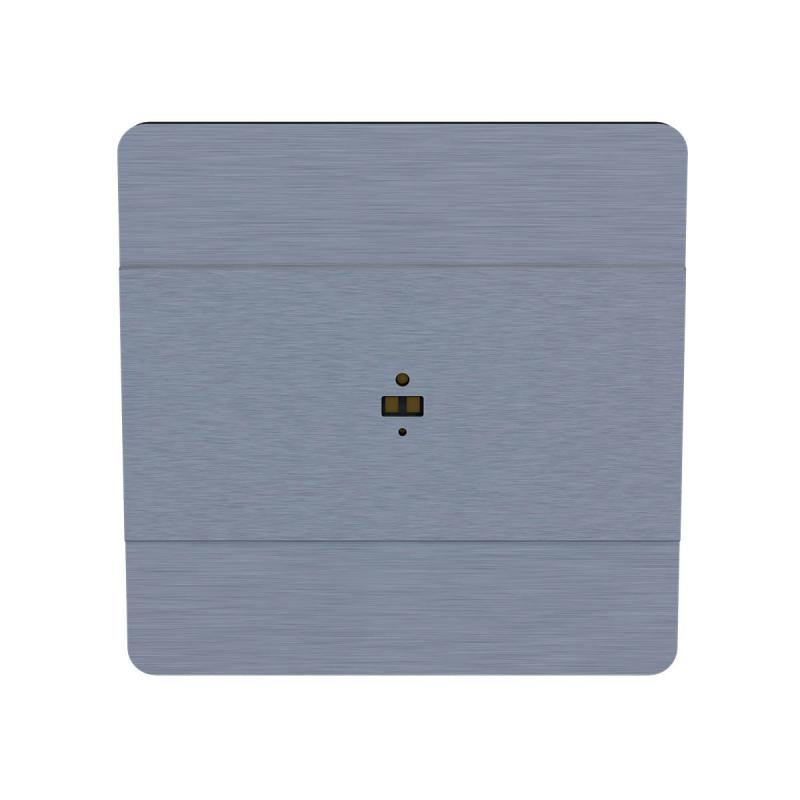

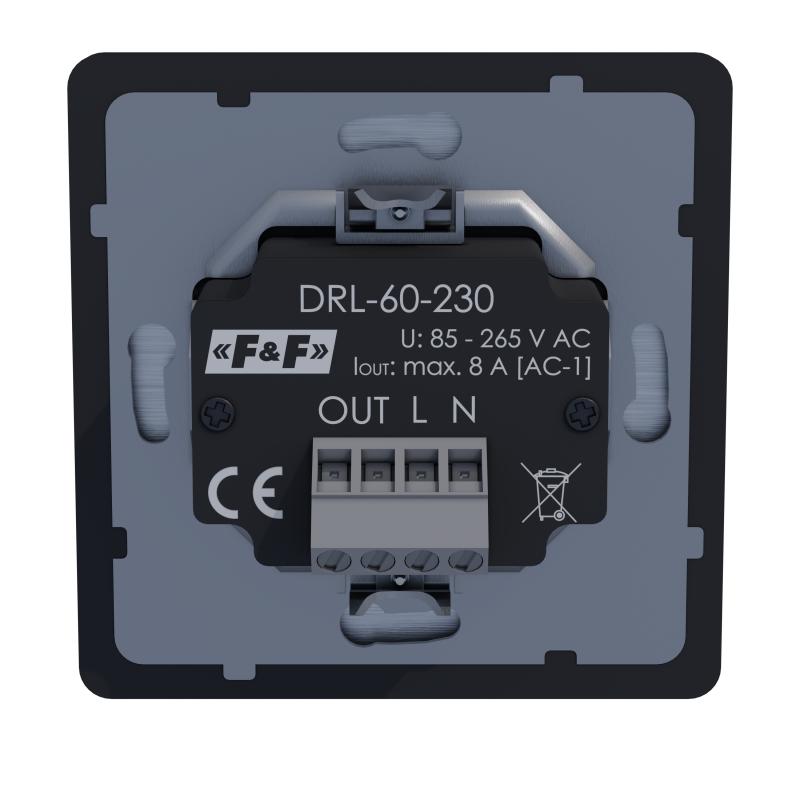

DRL-60-230 LASER DISTANCE SENSOR FOR O60 BOX MOTION SENSOR FOR LIGHTING CONTROL
146,59 € VAT incl.
- VAT excl.
121,15 € VAT excl.
VAT incl. (21%)
Part No:
DRL-60-230
Brand:
F&F
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,029 kg |
|---|---|
| Dimensions | 90 × 90 × 30 mm |
| Mounting method |
Flush-mounted |
| Color |
Aluminium |
| Model |
Movement sensor |
| Surface protection |
Anodised |
| Voltage type |
AC |
| Switching-on delay |
5s |
| Switch-off delay |
5s |
| Built-in depth |
30mm |
| Frequency |
50Hz |
| Diameter |
60mm |
| Built-in width |
48mm |
| Built-in diameter |
0mm |
| Max. reach frontally |
2m |
| Max. reach sideways |
0.5m |
| Max. switching power |
2000W |
| Temperature |
-10°C |
| Max. starting current |
8A |
| pa_material |
Metal |
| Connection cable length |
0mm |
| Response value luminosity |
2lx |
| Diameter reach on floor |
1m |
| RAL-number (similar) |
9006 |
| Control current |
0mA |
| Scan angle |
10° |
| Built-in length |
35mm |
| Impact strength |
IK00 |
| Nominal voltage |
165V |
| Degree of protection (IP) |
IP20 |
| Surface finishing |
Matt |
| Detection angle horizontal |
-18° |
| Min. switch-on time |
1s |
| Max. duty cycle |
10min |
| Optimum mounting height |
0.5m |
| Number of switching zones |
1 |
| Min. starting current |
0.1A |
| Min. depth of built-in installation box |
35mm |
| Max. presence range |
1m2 |
| Sensor type |
Other |
| Max. switching power LED |
100W |
| Brand | |
| SKU | 3015870 |
| EAN | 5902431675497 |
