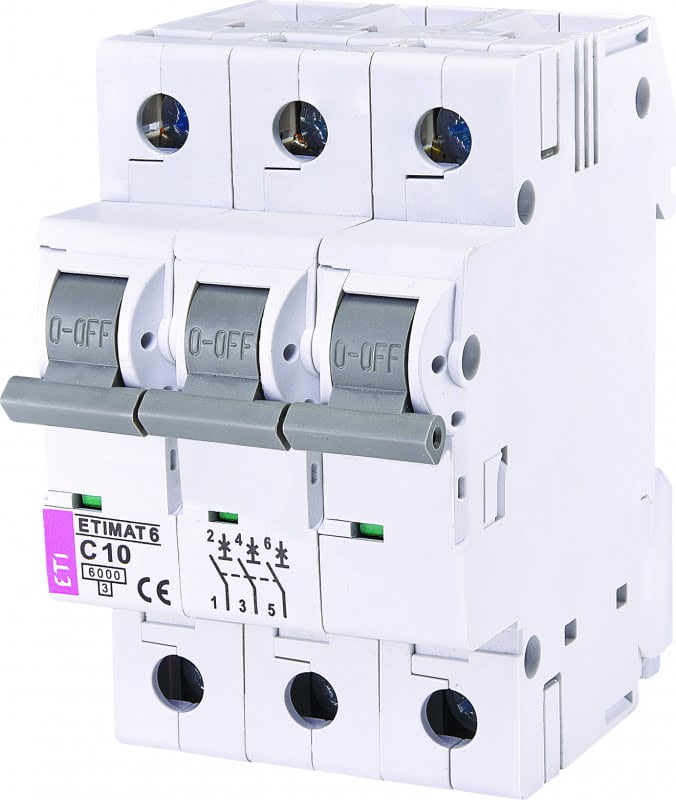

ETIMAT 6 C 10A 3P OVERCURRENT CIRCUIT BREAKER C 10A 3M 6KA ASTI

Name: ETIMAT 6 C 10A 3P OVERCURRENT CIRCUIT BREAKER C 10A 3M 6KA ASTI
Brand: ETI-POLAM
SKU: 125617
Availability: InStock

13,20 € VAT incl.

VAT incl. (21%)

RRP price: 30,46 €

Part No: 002145514

Brand: ETI-POLAM

3 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,31 kg
Dimensions	85 × 72 × 52 mm
Frequency	50Hz
Voltage type	AC
Built-in depth	68mm
Rated current	10A
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Rated short-circuit breaking capacity according to EN 60898	6kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated impulse withstand voltage Uimp	4kV
Brand	ETI-POLAM
SKU	125617
EAN	3838895262633
