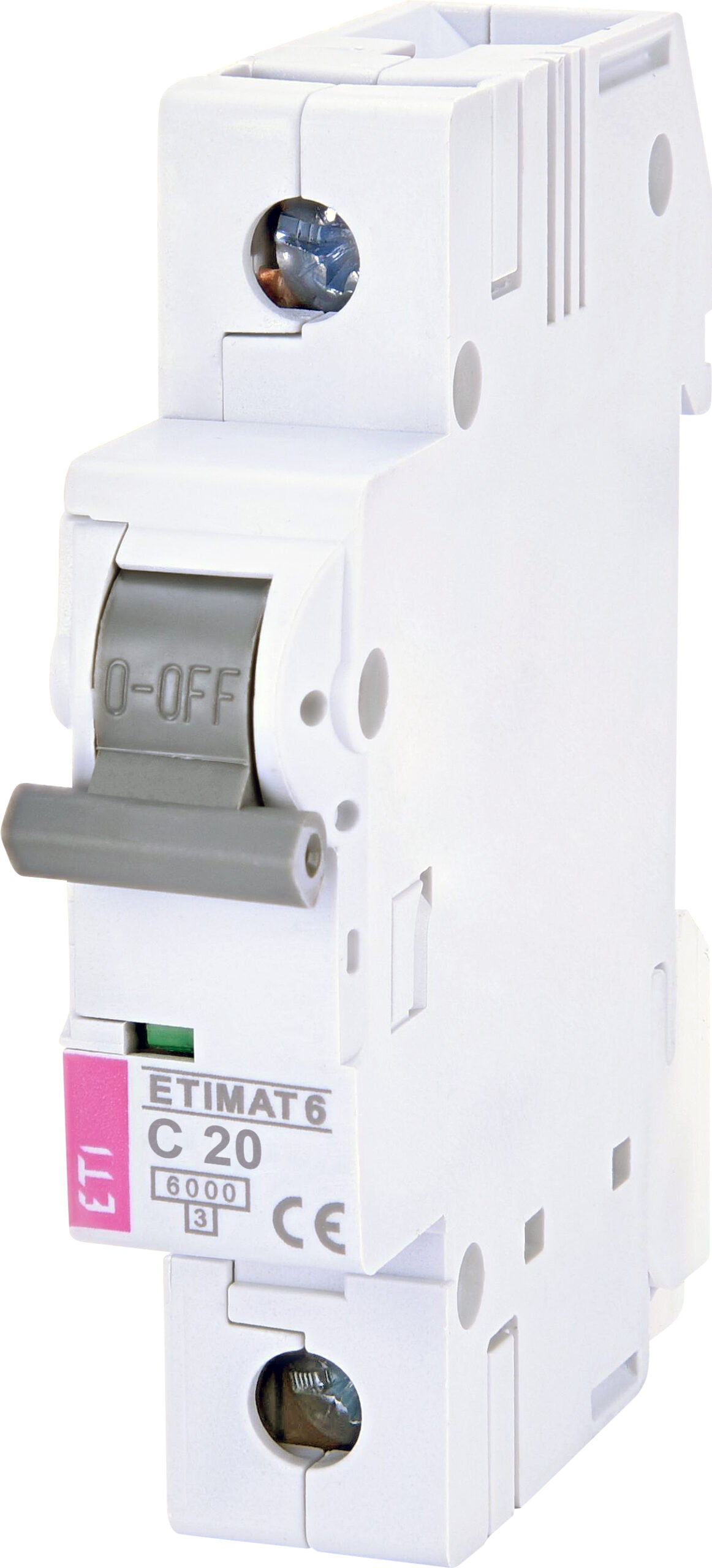

ETIMAT 6 C 20A 1P OVERCURRENT CIRCUIT BREAKER C 20A 1M 6KA ASTI

Name: ETIMAT 6 C 20A 1P OVERCURRENT CIRCUIT BREAKER C 20A 1M 6KA ASTI
Brand: ETI-POLAM
SKU: 600642
Availability: InStock

4,94 € VAT incl.

VAT incl. (21%)

RRP price: 8,03 €

Part No: 002141517

Brand: ETI-POLAM

120 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

ETIMAT 6 C 20A 1P OVERCURRENT CIRCUIT BREAKER C 20A 1M 6KA ASTI

Additional information

Weight	0,107 kg
Dimensions	85 × 72 × 17 mm
Frequency	50Hz
Voltage type	Other
Built-in depth	68mm
Rated current	20A
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Number of protected poles	1
Rated short-circuit breaking capacity according to EN 60898	6kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated impulse withstand voltage Uimp	4kV
Brand	ETI-POLAM
SKU	600642
EAN	3838895260929
