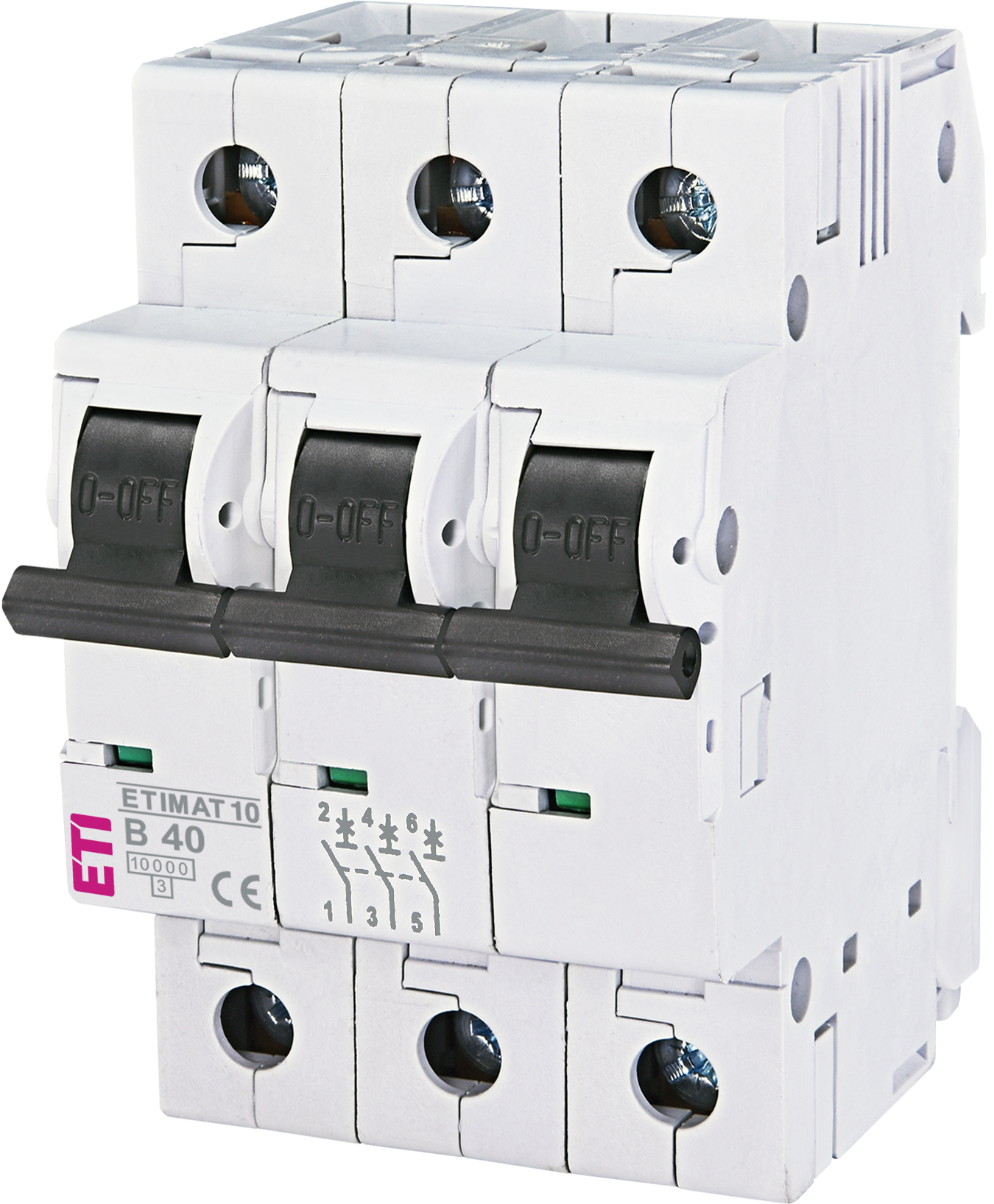

ETIMAT10 B 40A 3P OVERCURRENT CIRCUIT BREAKER B 40A 3M 10KA ASTI

Name: ETIMAT10 B 40A 3P OVERCURRENT CIRCUIT BREAKER B 40A 3M 10KA ASTI
Brand: ETI-POLAM
SKU: 008080
Availability: InStock

34,59 € VAT incl.

VAT incl. (21%)

Part No: 002125720

Brand: ETI-POLAM

4 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Overcurrent breakers protect electrical installations against overloads and short circuits. They operate by automatically interrupting the circuit when the permissible current is exceeded. They are an essential element of every switchgear. They are used in residential, commercial and industrial buildings.

Additional information

Weight	0,357 kg
Dimensions	60 × 100 × 70 mm
Frequency	50Hz
Voltage type	Other
Built-in depth	68mm
Rated current	40A
Release characteristic	B
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of poles protected	3
Rated short-circuit breaking capacity according to EN 60898	10kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15kA
Brand	ETI-POLAM
SKU	008080
EAN	5904722938496
