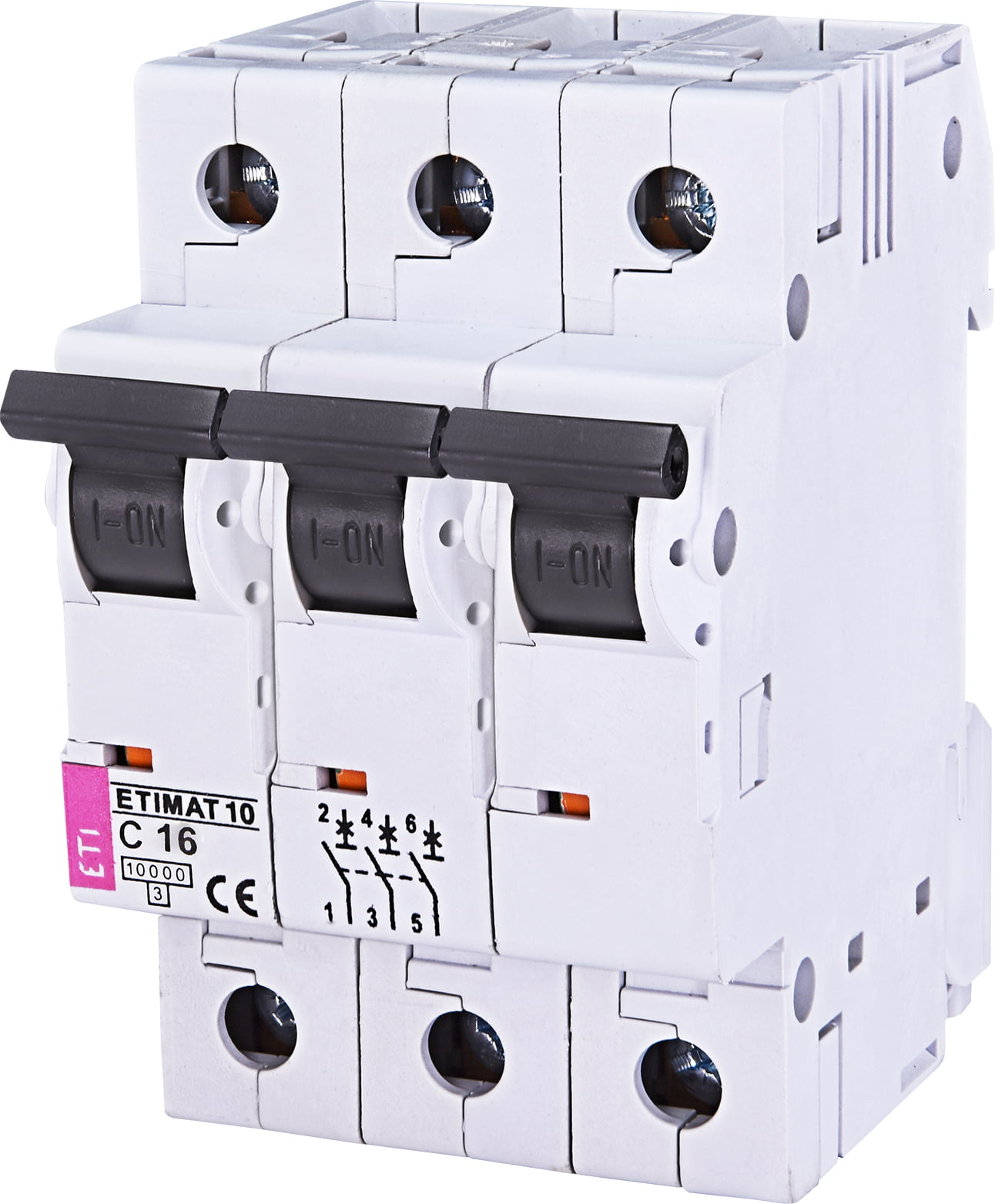

ETIMAT10 C 16A 3P OVERCURRENT CIRCUIT BREAKER C 16A 3M 10KA ASTI

Name: ETIMAT10 C 16A 3P OVERCURRENT CIRCUIT BREAKER C 16A 3M 10KA ASTI
Brand: ETI-POLAM
SKU: 008085
Availability: InStock

15,34 € VAT incl.

VAT incl. (21%)

RRP price: 35,13 €

Part No: 002135716

Brand: ETI-POLAM

17 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,31 kg
Dimensions	85 × 72 × 52 mm
Frequency	50Hz
Voltage type	Other
Built-in depth	68mm
Rated current	16A
Release characteristic	C
Rated insulation voltage Ui	500V
Current limiting class	3
Over voltage category	3
Pollution degree	3
Width in number of modular spacings	3
Degree of protection (IP)	IP20
Number of protected poles	3
Rated short-circuit breaking capacity according to EN 60898	10kA
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section multi-wired	1mm2
Ambient temperature during operating	-25°C
Number of poles (total)	3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	15kA
Brand	ETI-POLAM
SKU	008085
EAN	5904722938731
