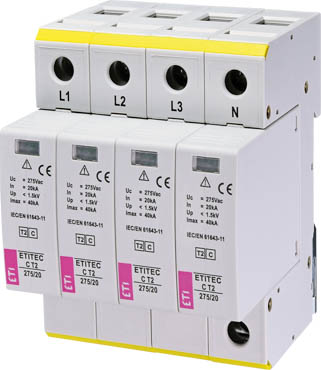

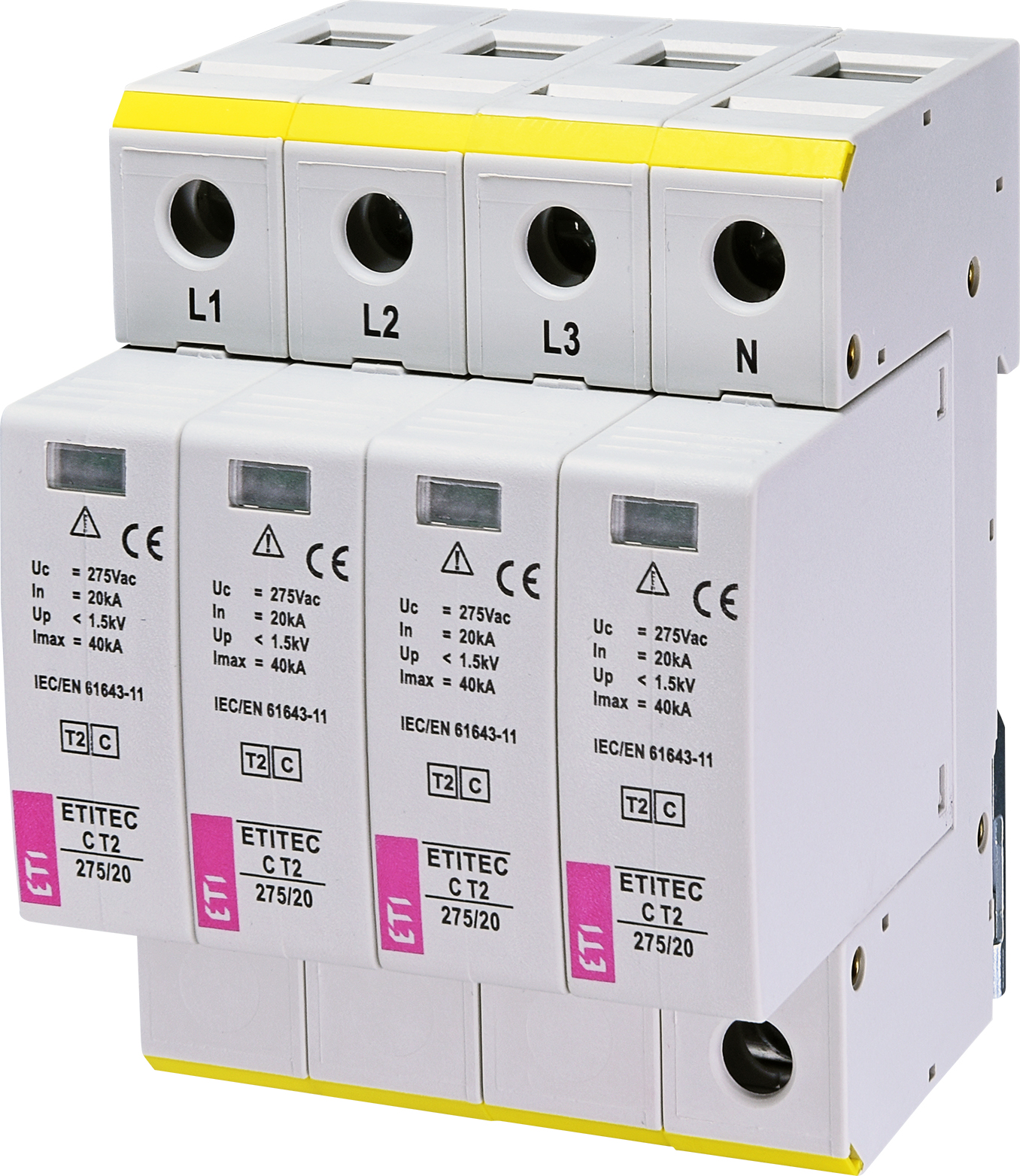

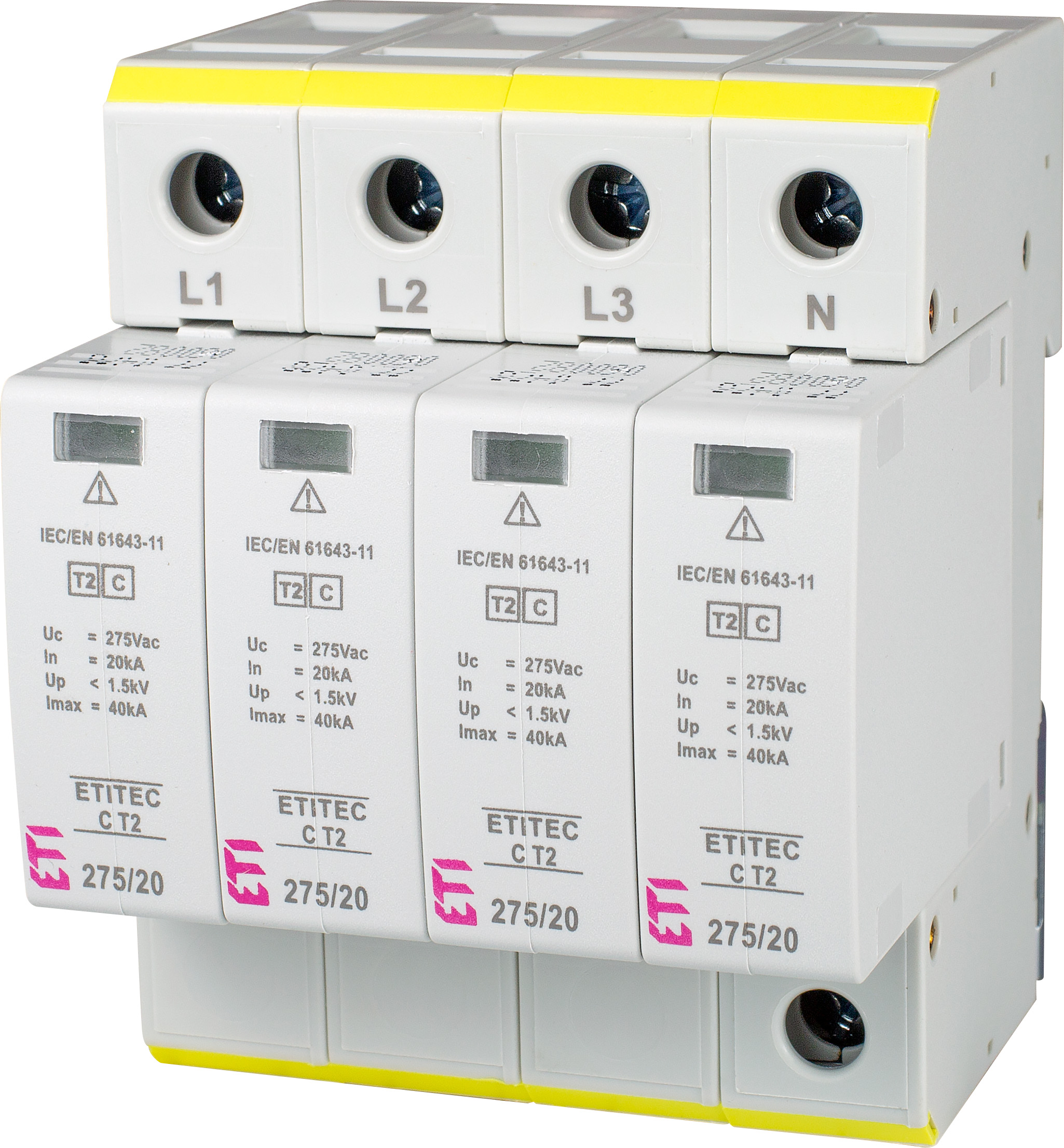

ETITEC C T2 275/20 4+0 SURGE ARRESTER T2 C 4P 4M 20/40KA 1.5KV TNS
116,60 € VAT incl.
- VAT excl.
96,36 € VAT excl.
VAT incl. (21%)
Part No:
002440395
Brand:
ETI-POLAM
161 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,468 kg |
|---|---|
| Dimensions | 77 × 108 × 75 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing) |
4 |
| Construction size |
4 modular spacing |
| Max. continuous voltage AC |
275V |
| Nominal discharge surge current (8/20) |
20kA |
| Nominal voltage AC |
230V |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Max. discharge surge current (8/20) |
40kA |
| Short-circuit breaking capacity (Isccr) |
25kA |
| Brand | |
| SKU | 657098 |
| EAN | 3838895768265 |
