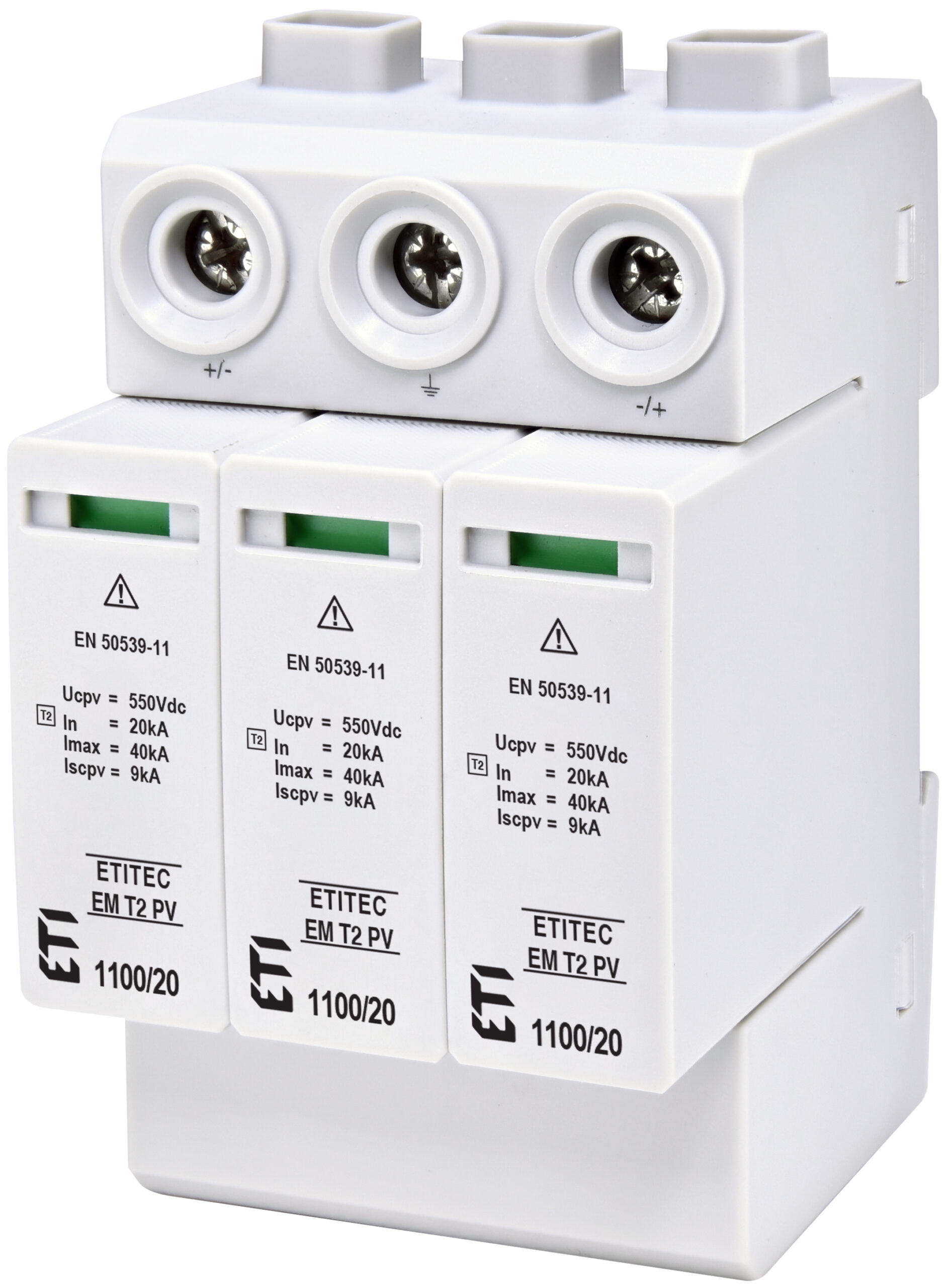

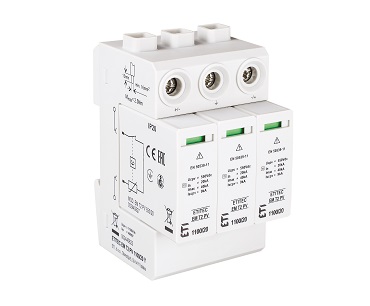

ETITEC EM T2 SURGE ARRESTER T2 C 3P 3M 20/40KA 3.8KV 1100V DC PV
67,29 € VAT incl.
- VAT excl.
55,61 € VAT excl.
VAT incl. (21%)
Part No:
002440623
Brand:
ETI-POLAM
32 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
ETITEC EM T2 SURGE ARRESTER T2 C 3P 3M 20/40KA 3.8KV 1100V DC PV
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 62 × 110 × 100 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing) |
2 |
| Construction size |
3 modular spacing |
| Voltage protection level |
4.2kV |
| Max. continuous voltage AC |
0V |
| Nominal discharge surge current (8/20) |
20kA |
| Nominal voltage AC |
0V |
| Nominal voltage DC |
1100V |
| Signalling at the device |
Optical |
| Max. continuous voltage DC |
1100V |
| Degree of protection (IP) |
IP20 |
| Max. PV-voltage |
916V |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Max. discharge surge current (8/20) |
40kA |
| Short-circuit breaking capacity (Isccr) |
9kA |
| Brand | |
| SKU | 794103 |
| EAN | 3838895877981 |
