Weight	26,2 kg
Dimensions	600 × 600 × 300 mm
Material core insulation	Other
Core identification	Colour
Weight	70kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Stranding element	Pairs
Colour outer sheath	Black
Category	6A (IEC)
Conductor material	Copper
Screen over stranding element	Foil
Screen over stranding	Foil
Material outer sheath	Other
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-30°C
Protective sheath	Al/PE
Number of cores	8
Stranding	Layers
Outer diameter approx.	7.4mm
NVP value	65%
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Fca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	23
Min. permitted bending radius, moving application with forced guidance	75mm
Min. permitted bending radius, moving application/free movement	75mm
Min. permitted bending radius, stationary application/permanent installation	60mm
Specification core insulation	Polyethylene (PE)
Specification material outer sheath	Polyethylene (PE)
Material armouring	Other
Cable geometry	Round
Approved type of underground installation	Other
Brand	C&C PARTNERS
SKU	3019456
EAN	5904169103266

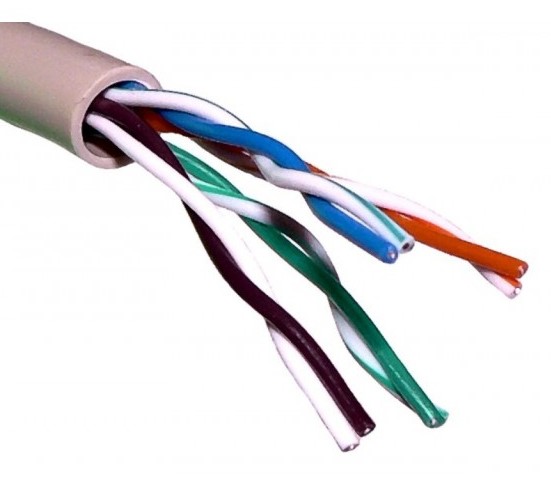

F/UTP CAT.6A SECURITYNET EXTERNAL GEL-FILLED TELECOM CABLE 500M DRUM
