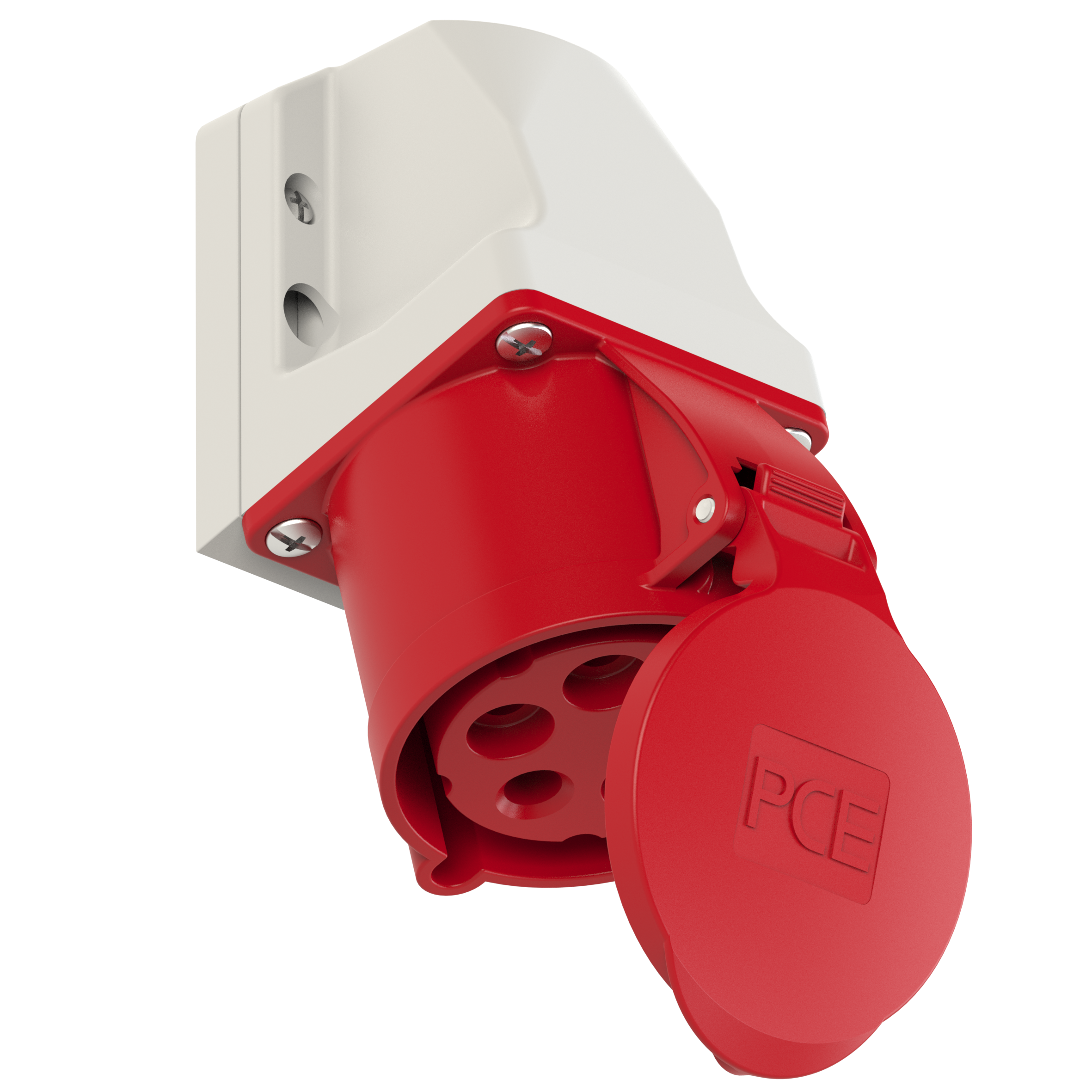

FIXED POWER SOCKET 32/5 IP44 400V
9,53 € VAT incl.
- VAT excl.
7,88 € VAT excl.
VAT incl. (21%)
Part No:
125-6K
Brand:
PCE
20 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Fixed industrial sockets are elements permanently installed on walls or other surfaces. They enable safe connection of devices powered by three-phase or single-phase current. They are characterized by high resistance to external factors, such as moisture or dust. They are used in production halls, warehouses and industrial plants.
Additional information
| Weight | 0,25 kg |
|---|---|
| Dimensions | 160 × 80 × 80 mm |
| Model |
Surface mounted |
| RAL-number |
3000 |
| Cable entry |
Gland nut |
| Number of poles |
5 |
| pa_material |
Plastic |
| Type of fastening |
External mounting |
| Finishing of the contact surface |
Untreated |
| IEC-amperage |
32A |
| Connection system |
Screwed terminal |
| Contact material |
CuZn |
| Degree of protection (IP) |
IP44 |
| Military model |
No |
| Clock hour position |
6h |
| Identification colour |
Red |
| Voltage according to EN 60309-2 |
400 V (50+60 Hz) red |
| Brand | |
| SKU | 065909 |
| EAN | 9003399022913 |
