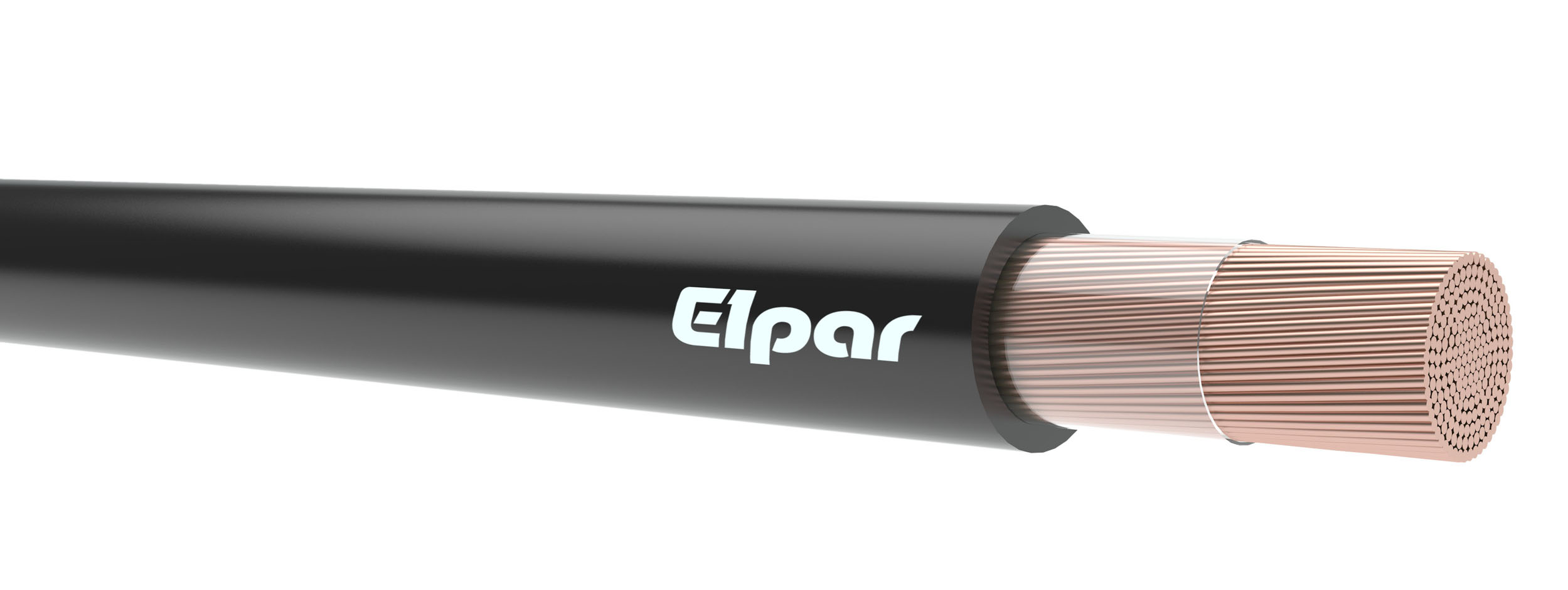

H01N2-D ONS-1 16.0 BLACK RUBBER WELDING CABLE 100/100V DRUM

Name: H01N2-D ONS-1 16.0 BLACK RUBBER WELDING CABLE 100/100V DRUM
Brand: ELPAR
SKU: 3095583
Availability: InStock

2711,77 € VAT incl.

VAT incl. (21%)

RRP price: 3719,24 €

Part No: H01N2-D-16 OS

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	203 kg
Dimensions	700 × 700 × 400 mm
Nominal cross section conductor	16mm2
Core identification	None
Nominal voltage U	100V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Rubber
Conductor category	Class 6 = very flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	100V
Number of cores	1
Suspension element	None
Outer diameter approx.	9mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	None
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, moving application/free movement	36mm
Cable geometry	Round
Brand	ELPAR
SKU	3095583
EAN	5901854402833
