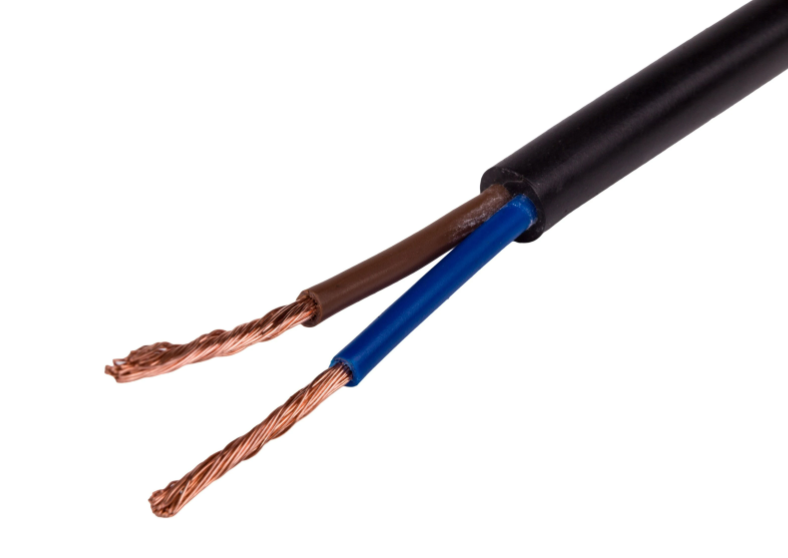

H03VV-F OMY 2X 1.0 BLACK ROUND SOFT 300/300V RESIDENTIAL CABLE

Name: H03VV-F OMY 2X 1.0 BLACK ROUND SOFT 300/300V RESIDENTIAL CABLE
Brand: ELPAR
SKU: 3042286
Availability: InStock

512,46 € VAT incl.

VAT incl. (21%)

Part No: OMY-2X1CR

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	3 kg
Dimensions	250 × 250 × 100 mm
Nominal cross section conductor	1mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Nominal voltage U	300V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	300V
Number of cores	2
Suspension element	None
Outer diameter approx.	5.6mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	None
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	28mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3042286
EAN	5901854409740
