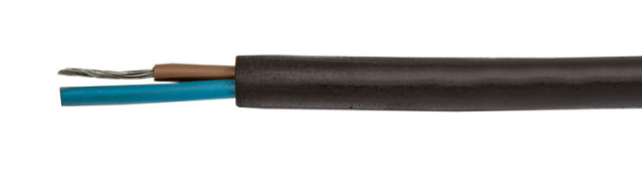

H05RR-F OW 2X 1.0 BLACK ROUND SOFT RUBBER CABLE 300/500V DRUM FOR MOBILE RECEIVERS
827,81 € VAT incl.
- VAT excl.
684,14 € VAT excl.
VAT incl. (21%)
Part No:
5907749704808
Brand:
ELEKTROKABEL
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Additional information
| Weight | 73 kg |
|---|---|
| Dimensions | 300 × 300 × 200 mm |
| Nominal cross section conductor |
1mm2 |
| Core identification |
Colour |
| Weight |
62kg/km |
| Drain wire |
No |
| Nominal voltage U |
500V |
| Stranding element |
No |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Screen over stranding element |
None |
| Screen over stranding |
None |
| Material outer sheath |
Rubber |
| Conductor category |
Class 5 = flexible |
| Torsion resistant |
No |
| Nominal voltage U0 |
300V |
| Screen |
No |
| Number of cores |
2 |
| Suspension element |
None |
| Protective barrier |
None |
| Outer diameter approx. |
6.6mm |
| With protective conductor |
No |
| Low temperature resistant according to EN 60811-504+505+506 |
No |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Nominal cross section conductor (AWG) |
17kcmil |
| Min. permitted bending radius, moving application/free movement |
26.4mm |
| Min. permitted bending radius, stationary application/permanent installation |
19.14mm |
| Specification core insulation |
Rubber – ethylene propylene rubber (EPR) |
| Specification material outer sheath |
Rubber – ethylene propylene rubber (EPR) |
| Cable geometry |
Round |
| Conductor resistance at 20 °C |
20Ω/km |
| Core identification according to HD 308 S2 |
Yes |
| Brand | |
| SKU | 3042137 |
| EAN | 5907749704808 |
