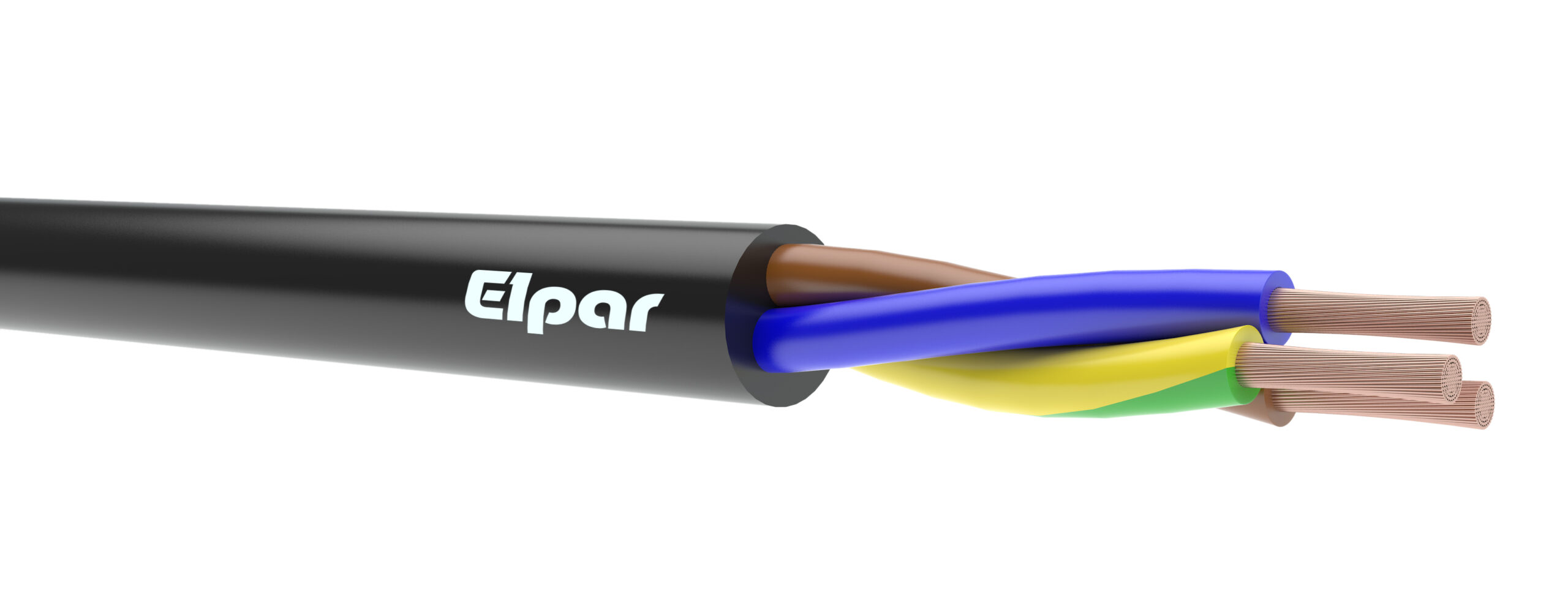

H05RR-F OW 3X 0.75 ŻO BLACK ROUND SOFT RUBBER CABLE 300/500V DRUM FOR MOBILE RECEIVERS

Name: H05RR-F OW 3X 0.75 ŻO BLACK ROUND SOFT RUBBER CABLE 300/500V DRUM FOR MOBILE RECEIVERS
Brand: ELPAR
SKU: 3086035
Availability: InStock

569,83 € VAT incl.

VAT incl. (21%)

RRP price: 779,72 €

Part No: H05RR-F-3G0,75 OW

Brand: ELPAR

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Additional information

Nominal cross section conductor	0.75mm2
Material core insulation	Rubber
Core identification	Colour
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Rubber
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	300V
Number of cores	3
Suspension element	None
Outer diameter approx.	6.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	20.1mm
Specification core insulation	Rubber – ethylene propylene rubber (EPR)
Specification material outer sheath	Rubber – ethylene propylene rubber (EPR)
Cable geometry	Round
Brand	ELPAR
SKU	3086035
EAN	5901854403205
