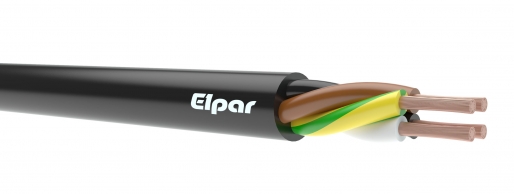

H05RR-F OW 3X1.5 ŻO BLACK ROUND SOFT RUBBER CABLE 300/500V FOR MOBILE RECEIVERS

Name: H05RR-F OW 3X1.5 ŻO BLACK ROUND SOFT RUBBER CABLE 300/500V FOR MOBILE RECEIVERS
Brand: ELPAR
SKU: 633376
Availability: InStock

1503,43 € VAT incl.

VAT incl. (21%)

Part No: H05RR-F-3G1,5 OW

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	11 kg
Dimensions	340 × 340 × 125 mm
Nominal cross section conductor	1.5mm2
Material core insulation	Rubber
Core identification	Colour
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Rubber
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	300V
Number of cores	3
Suspension element	None
Outer diameter approx.	8.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	26.4mm
Specification core insulation	Rubber – ethylene propylene rubber (EPR)
Specification material outer sheath	Rubber – ethylene propylene rubber (EPR)
Cable geometry	Round
Brand	ELPAR
SKU	633376
EAN	5901854403229
