H05V-K LGY 0.5 BLACK SINGLE CONDUCTOR FLEXIBLE CABLE 300/500V CL.5 BOX

Name: H05V-K LGY 0.5 BLACK SINGLE CONDUCTOR FLEXIBLE CABLE 300/500V CL.5 BOX
Brand: HELUKABEL
SKU: 704726
Availability: InStock

158,95 € VAT incl.

VAT incl. (21%)

Part No: 29081

Brand: HELUKABEL

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

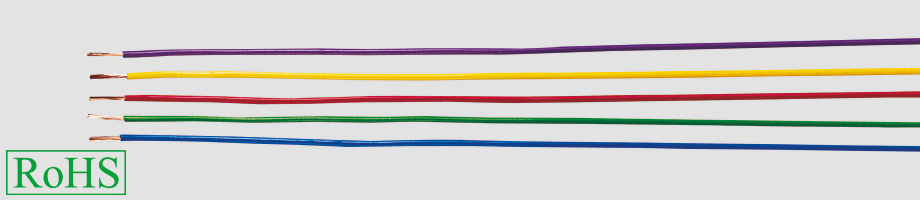

Flexible cables for installation in pipes and switchboards. Designed for indoor installations, control cabinets, industrial installations and grounding circuits. Available in a wide range of colors for easy identification.

Additional information

Weight	1,14 kg
Dimensions	204 × 201 × 60 mm
Core insulation material	Polyvinyl chloride (PVC)
Core identification	None
Conductor material	Copper
Conductor category	Class 5 = flexible
Core colour	Black
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	20
Identification/coding colour core	Black
Cable packaging	Puck
Commercial designation	H05V-K LGY
Halogen-free according to IEC 60754-2	No
Oil-resistant (according to IEC 60811-404)	No
Low temperature resistant according to EN 60811-504+505+506	Yes
Maximum allowable core temperature	70°C
Nominal voltage U	500V
Nominal voltage U0	300V
Nominal cross section conductor	0.5mm2
Diameter conductor	0.9mm
Outer diameter approx.	2.2mm
Brand	HELUKABEL
SKU	704726
EAN	4060892000003
