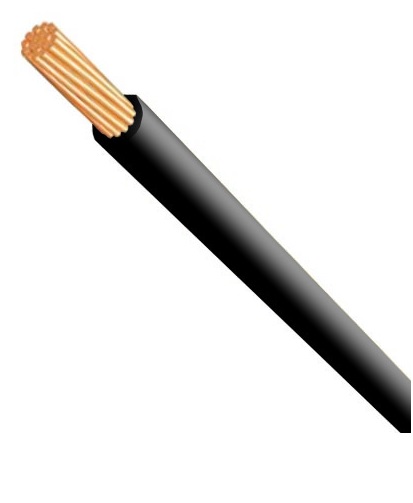

H05V-U DY 0.5 BLACK SINGLE CONDUCTOR WIRE 300/500V CL.1

Name: H05V-U DY 0.5 BLACK SINGLE CONDUCTOR WIRE 300/500V CL.1
Brand: TELE-FONIKA KABLE
SKU: 004497
Availability: InStock

106,14 € VAT incl.

VAT incl. (21%)

Part No: G-105468

Brand: TELE-FONIKA KABLE

Delivery time 3-5 working days.

For your home.

Fast support.

Description

KAB0027 Przewód DY 0.5 500V czarny CENTROPOL

Additional information

Weight	8 kg
Dimensions	1000 × 3 × 3 mm
Nominal cross section conductor	0.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Weight	8.36kg/km
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500V
Shape of conductor	Round
Diameter conductor	0.79mm
Conductor material	Copper
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Black
Nominal voltage U0	300V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	1.99mm
Low smoke (according to EN 61034-2)	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	7.96mm
Specification core insulation	Other
Cable geometry	Round
Conductor resistance at 20 °C	36Ω/km
Identification/coding colour core	Black
Brand	TELE-FONIKA KABLE
SKU	004497
EAN	5907802003626
