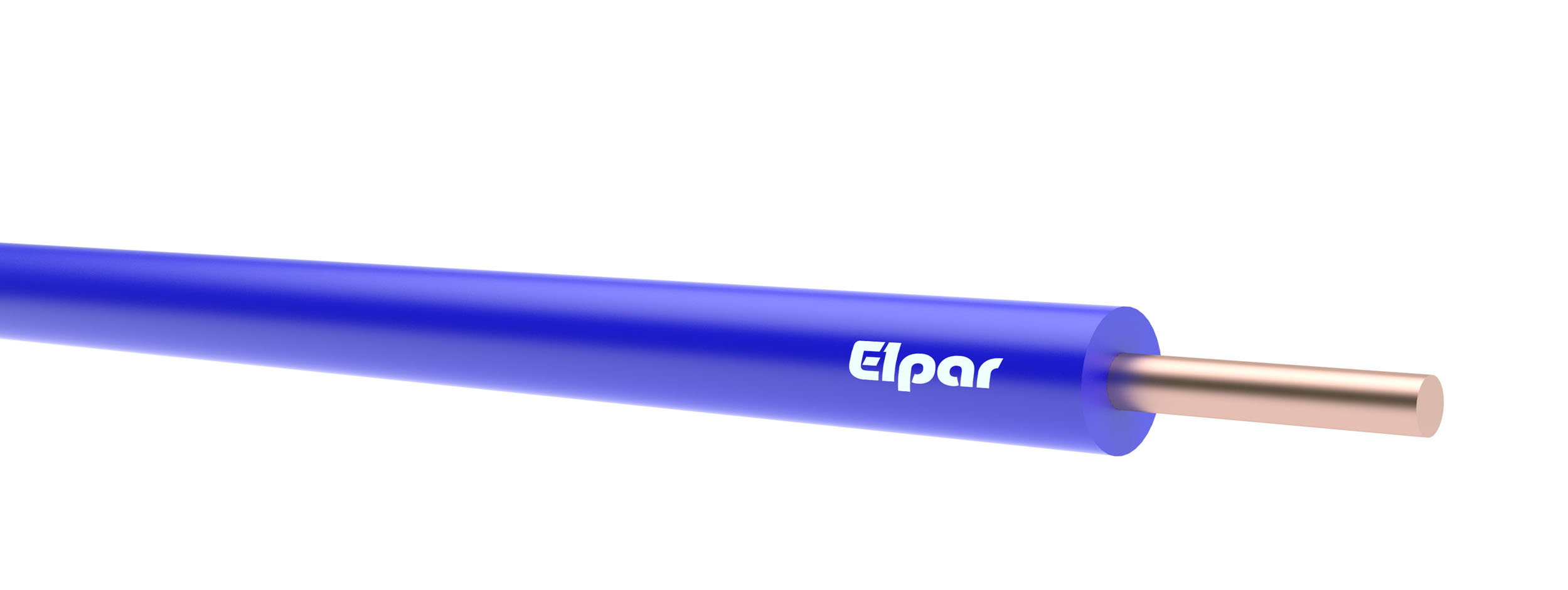

H05V-U DY 0.5 NIEBIESKI PRZEWÓD JEDNOŻYŁOWY DRUT 300/500V KL.1

Name: H05V-U DY 0.5 NIEBIESKI PRZEWÓD JEDNOŻYŁOWY DRUT 300/500V KL.1
Brand: ELPAR
SKU: 3128254
Availability: InStock

564,31 € VAT incl.

VAT incl. (21%)

Part No: H05V-U-0,5NE DY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	0,03 kg
Dimensions	150 × 150 × 80 mm
Nominal cross section conductor	0.5mm2
Core identification	Colour
Nominal voltage U	500V
Shape of conductor	Round
Diameter conductor	2mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	Several
Nominal voltage U0	300V
Number of cores	1
Protective barrier	None
Outer diameter approx.	2mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	8mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3128254
EAN	5901854404080
