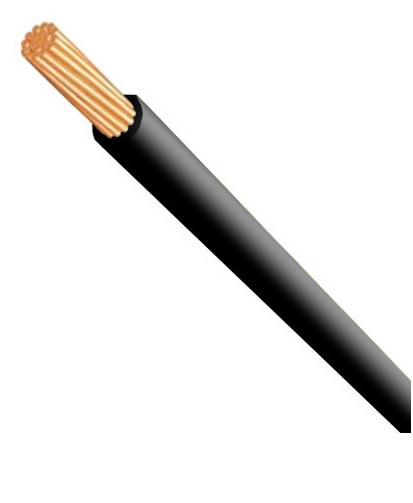

H05V-U DY 0.75 BLACK SINGLE CONDUCTOR WIRE 300/500V CL.1

Name: H05V-U DY 0.75 BLACK SINGLE CONDUCTOR WIRE 300/500V CL.1
Brand: TELE-FONIKA KABLE
SKU: 004507
Availability: InStock

139,96 € VAT incl.

VAT incl. (21%)

Part No: G-105475

Brand: TELE-FONIKA KABLE

Delivery time 3-5 working days.

For your home.

Fast support.

Description

KAB0023 Przewód DY 0.75 500V czarny CENTROPOL

Additional information

Weight	11 kg
Dimensions	1000 × 11 × 11 mm
Nominal cross section conductor	0.75mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Weight	10.964kg/km
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500V
Shape of conductor	Round
Diameter conductor	0.96mm
Conductor material	Copper
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Black
Nominal voltage U0	300V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	2.16mm
Low smoke (according to EN 61034-2)	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	8.64mm
Specification core insulation	Other
Cable geometry	Round
Conductor resistance at 20 °C	24.5Ω/km
Identification/coding colour core	Black
Brand	TELE-FONIKA KABLE
SKU	004507
EAN	5907802003701
