Weight	2 kg
Dimensions	220 × 220 × 50 mm
Nominal cross section conductor	1mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	13kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	500V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Several
Nominal voltage U0	300V
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	2.25mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	5mm
Specification core insulation	Other
Cable geometry	Round
Identification/coding colour core	Other
Brand	NKT
SKU	3088152
EAN	5907802035856

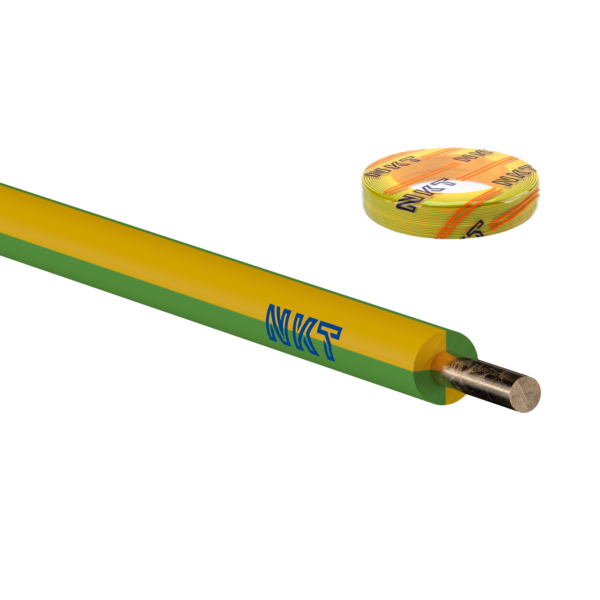

H05V-U DY 1.0 ŻO SINGLE CORE WIRE 300/500V CL.1
