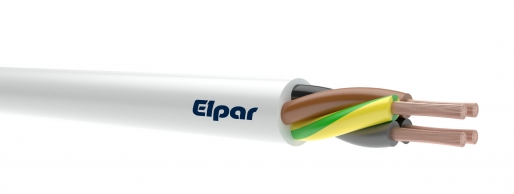

H05VV-F 300/500V 2×1,5 MM2
826,28 € VAT incl.
- VAT excl.
682,88 € VAT excl.
VAT incl. (21%)
Part No:
H05VV-F-2X1,5 OWY
Brand:
ELPAR
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Request the product
Description
Economic cables for portable equipment and temporary installations. Light, easy to assemble and use. They are characterized by high flexibility. They are used in households, plants and all types of installations where such properties can be used.
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 300 × 300 × 200 mm |
| Nominal cross section conductor |
1.5mm2 |
| Core insulation material |
Polyvinyl chloride (PVC) |
| Core identification |
Colour |
| Weight |
81kg/km |
| Drain wire |
No |
| Nominal voltage U |
500V |
| Stranding element |
No |
| Color of coating/insulation |
White |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Screen over stranding element |
None |
| Screen over stranding |
None |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 5 = flexible |
| Armouring/reinforcement |
None |
| Permissible ambient temperature of the cable during installation |
-15°C |
| Permissible ambient temperature of the cable after installation (without vibration) |
-15°C |
| Torsion resistant |
No |
| Number of stranding elements |
0 |
| Nominal voltage U0 |
300V |
| Screen |
No |
| Number of cores |
2 |
| Suspension element |
None |
| Maximum allowable core temperature |
70°C |
| Protective barrier |
None |
| Outer diameter approx. |
7.2mm |
| With protective conductor |
No |
| Oil-resistant (according to IEC 60811-404) |
No |
| Low temperature resistant according to EN 60811-504+505+506 |
Yes |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| AWG size |
Other |
| Min. permitted bending radius, moving application/free movement |
29mm |
| Min. permitted bending radius, stationary application/permanent installation |
43.8mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
Yes |
| Cable packaging |
Puck |
| Commercial designation |
H05VV-F OWY |
| Fire resistance according to IEC 60332-1-2 |
Yes |
| Brand | |
| SKU | 3094320 |
| EAN | 5901854404264 |
