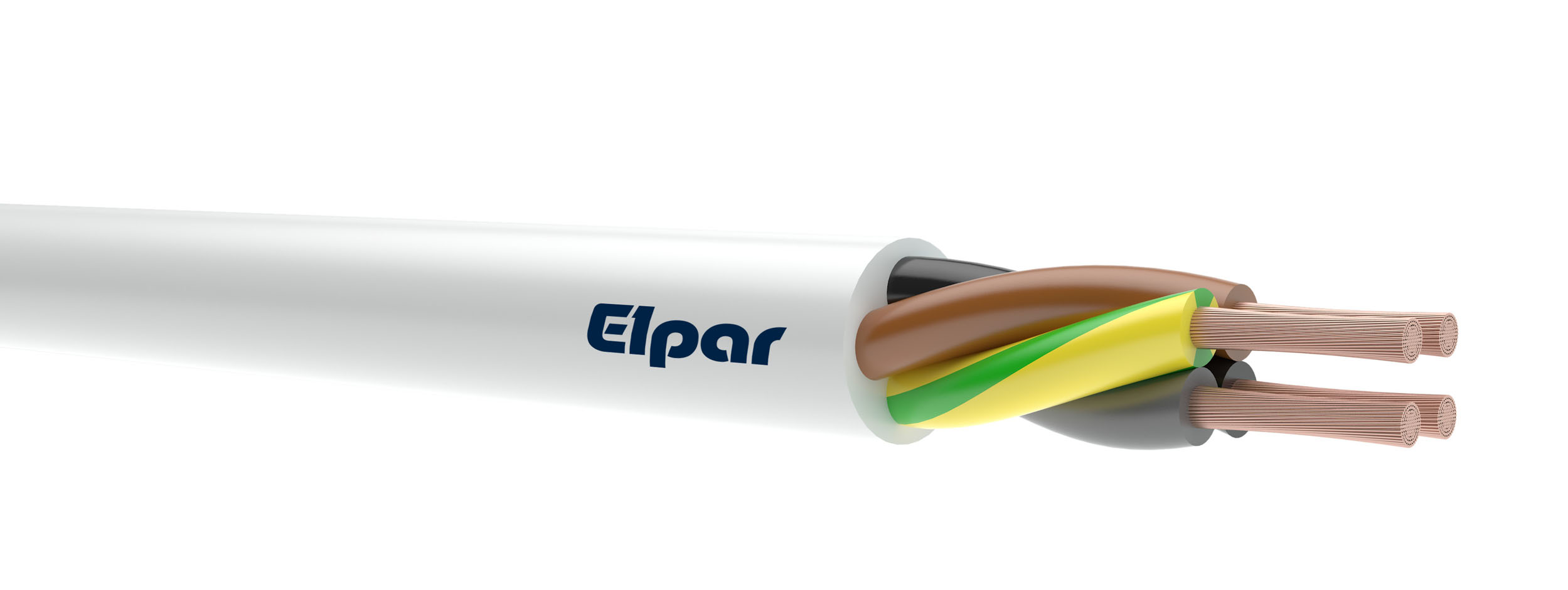

H05VV-F OWY 4X 1.5 ŻO BIAŁY PRZEWÓD OKRĄGŁY 300/500V KL.5 DO ODBIORNIKÓW RUCHOMYCH

Name: H05VV-F OWY 4X 1.5 ŻO BIAŁY PRZEWÓD OKRĄGŁY 300/500V KL.5 DO ODBIORNIKÓW RUCHOMYCH
Brand: ELPAR
SKU: 3157264
Availability: InStock

1660,39 € VAT incl.

VAT incl. (21%)

Part No: H05VV-F-4G1,5 OWY

Brand: ELPAR

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

Economic cables for portable equipment and temporary installations. Light, easy to assemble and use. They are characterized by high flexibility. They are used in households, plants and all types of installations where such properties can be used.

Additional information

Weight	100 kg
Dimensions	1200 × 800 × 300 mm
Nominal cross section conductor	1.5mm2
Core insulation material	Polyvinyl chloride (PVC)
Core identification	Colour
Nominal voltage U	500V
Stranding element	No
Color of coating/insulation	White
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permissible ambient temperature of the cable during installation	-5°C
Nominal voltage U0	300V
Number of cores	4
Suspension element	None
Outer diameter approx.	9mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	54mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3157264
EAN	5901854404516
