Weight	5 kg
Dimensions	310 × 310 × 150 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	189kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Colour outer sheath	White
Shape of conductor	Round
Diameter conductor	1.8mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	5°C
Permitted cable outer temperature after assembling without vibration	-30°C
Core colour	Several
Number of cores	4
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	10.41mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Identification/coding colour core	Other
Brand	NKT
SKU	3033665
EAN	5907802043622

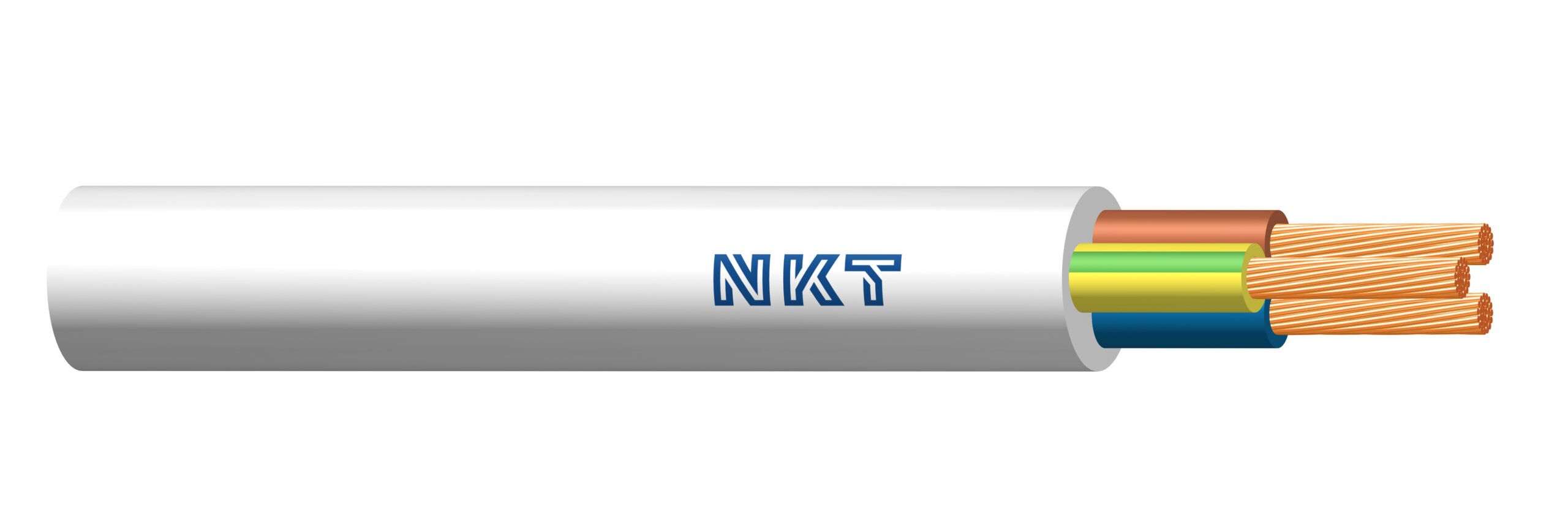

H05VV-F FLEXIBLE 4X 2.5 ŻO WHITE ROUND SOFT CABLE 300/500V FOR MOBILE RECEIVERS
