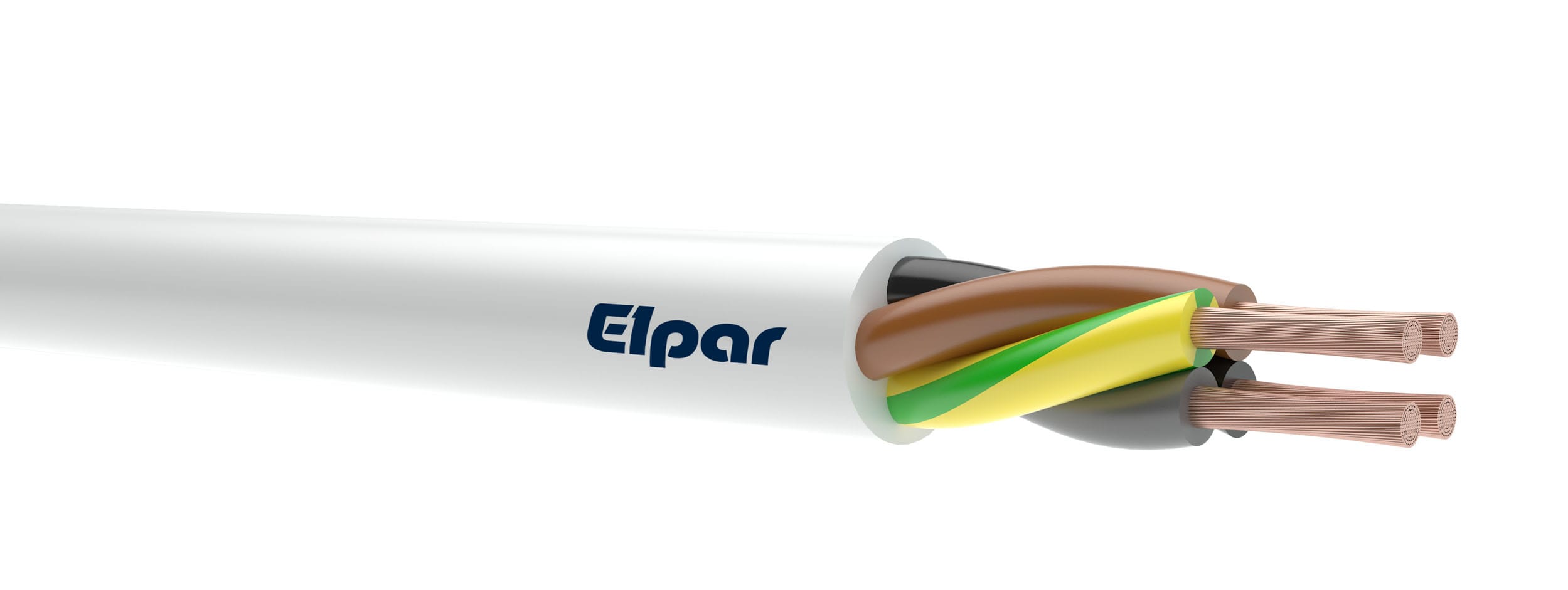

H05VV-F FLEXIBLE 4X 2.5 ŻO WHITE ROUND SOFT CABLE 300/500V FOR MOBILE RECEIVERS

Name: H05VV-F FLEXIBLE 4X 2.5 ŻO WHITE ROUND SOFT CABLE 300/500V FOR MOBILE RECEIVERS
Brand: ELPAR
SKU: 3034480
Availability: InStock

2258,84 € VAT incl.

VAT incl. (21%)

Part No: H05VV-F-4G2,5 OWY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	7 kg
Dimensions	370 × 370 × 110 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Nominal voltage U	500V
Stranding element	No
Colour outer sheath	White
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	300V
Number of cores	4
Suspension element	None
Outer diameter approx.	10.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	64.2mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3034480
EAN	5901854404547
