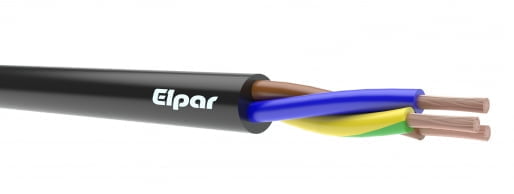

H07RN-F ONPD 5G 25.0 ŻO BLACK SOFT RUBBER CABLE 450/750V DRUM CL.5 OIL RESISTANT

Name: H07RN-F ONPD 5G 25.0 ŻO BLACK SOFT RUBBER CABLE 450/750V DRUM CL.5 OIL RESISTANT
Brand: ELPAR
SKU: 937953
Availability: InStock

21266,66 € VAT incl.

VAT incl. (21%)

RRP price: 30395,70 €

Part No: H07RN-F-5G25 OPD

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	2000 kg
Dimensions	1600 × 1600 × 900 mm
Nominal cross section conductor	25mm2
Material core insulation	Rubber
Core identification	Colour
Nominal voltage U	750V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Rubber
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	450V
Number of cores	5
Suspension element	None
Outer diameter approx.	33.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	135.2mm
Specification core insulation	Rubber – ethylene propylene rubber (EPR)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	937953
EAN	5901854405230
