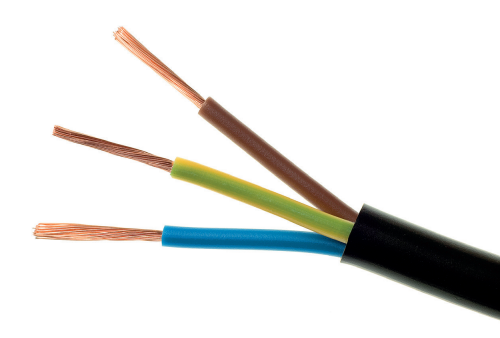

H07RN-F OPND 5X 35.0 ŻO SOFT RUBBER CABLE 750/750V OIL-RESISTANT FLAMEPROOF

Name: H07RN-F OPND 5X 35.0 ŻO SOFT RUBBER CABLE 750/750V OIL-RESISTANT FLAMEPROOF
Brand: ELPAR
SKU: 587180
Availability: InStock

28223,78 € VAT incl.

VAT incl. (21%)

RRP price: 51397,73 €

Part No: H07RN-F-5G35 OPD

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	2810 kg
Dimensions	2000 × 2000 × 900 mm
Nominal cross section conductor	35mm2
Material core insulation	Rubber
Core identification	Colour
Nominal voltage U	750V
Stranding element	No
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Screen over stranding element	None
Screen over stranding	None
Material outer sheath	Rubber
Conductor category	Class 5 = flexible
Permitted cable outer temperature during assembling/handling	-5°C
Nominal voltage U0	450V
Number of cores	5
Suspension element	None
Outer diameter approx.	36.3mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	145.2mm
Specification core insulation	Rubber – ethylene propylene rubber (EPR)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	587180
EAN	5901854405247
