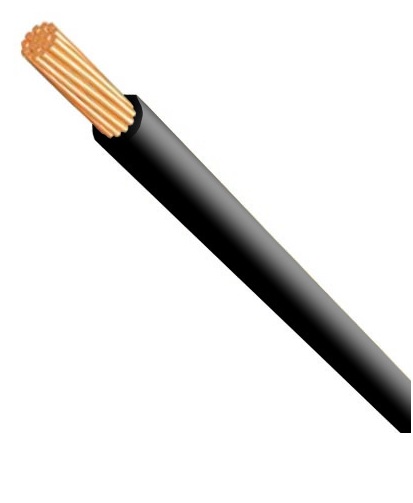

H07V-K LGY 120.0 BLACK SINGLE CONDUCTOR CABLE FLEXIBLE LINE 450/750V DRUM CL.5

Name: H07V-K LGY 120.0 BLACK SINGLE CONDUCTOR CABLE FLEXIBLE LINE 450/750V DRUM CL.5
Brand: TELE-FONIKA KABLE
SKU: 004749
Availability: InStock

15796,68 € VAT incl.

VAT incl. (21%)

Part No: G-106130

Brand: TELE-FONIKA KABLE

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

00094/I PRZEWÓD LGY 95 NIEBIESKI G-006122 M EŁKTRIM

Additional information

Weight	1136 kg
Dimensions	450 × 450 × 560 mm
Nominal cross section conductor	120mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Weight	1122.51kg/km
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	750V
Shape of conductor	Round
Diameter conductor	13.97mm
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 5 = flexible
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Black
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	17.17mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	103.02mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Conductor resistance at 20 °C	0.154Ω/km
Identification/coding colour core	Black
Brand	TELE-FONIKA KABLE
SKU	004749
EAN	5900424000264
