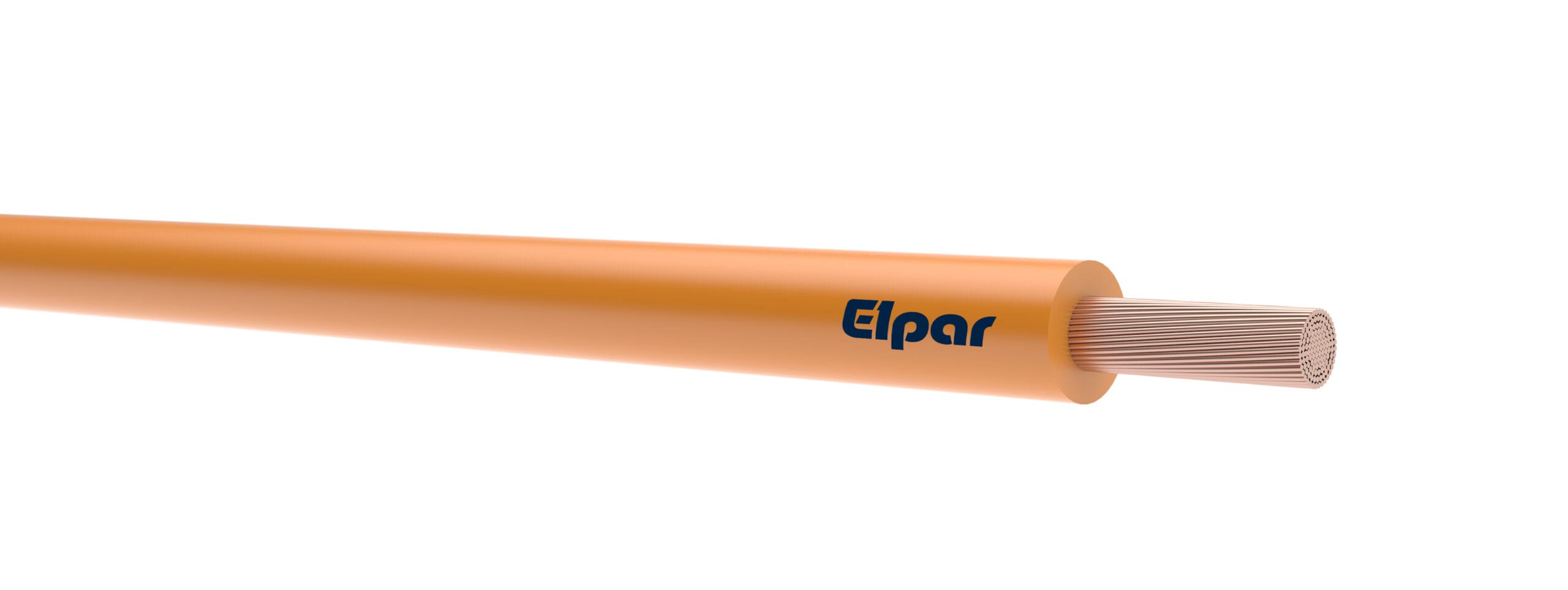

H07V-K LGY 120.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5

Name: H07V-K LGY 120.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5
Brand: ELPAR
SKU: 3041898
Availability: InStock

24924,55 € VAT incl.

VAT incl. (21%)

Part No: H07V-K-120ŻO LGY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	1130 kg
Dimensions	900 × 900 × 560 mm
Nominal cross section conductor	120mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	Other
Shape of conductor	Round
Diameter conductor	17.8mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	17.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	106.8mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3041898
EAN	5901854405865
