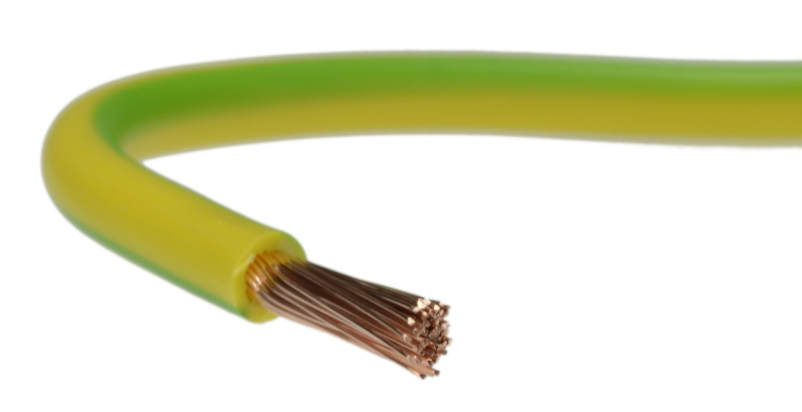

H07V-K LGY 16.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5

Name: H07V-K LGY 16.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5
Brand: ELEKTROKABEL
SKU: 3036920
Availability: InStock

3758,85 € VAT incl.

VAT incl. (21%)

Part No: 5907749704952

Brand: ELEKTROKABEL

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	163 kg
Dimensions	400 × 400 × 300 mm
Nominal cross section conductor	16mm2
Core identification	None
Nominal voltage U	750V
Conductor material	Copper
Conductor category	Class 5 = flexible
Core colour	Green/yellow
Nominal voltage U0	450V
Outer diameter approx.	7.2mm
Low temperature resistant according to EN 60811-504+505+506	Yes
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	Other
Identification/coding colour core	Other
Brand	ELEKTROKABEL
SKU	3036920
EAN	5907749704952
