Weight	2 kg
Dimensions	100000 × 2 × 1 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	30kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Shape of conductor	Round
Diameter conductor	2.5mm
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 5 = flexible
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	5°C
Permitted cable outer temperature after assembling without vibration	-30°C
Core colour	Blue
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	3.52mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Specification core insulation	Other
Cable geometry	Round
Identification/coding colour core	Blue
Brand	NKT
SKU	3079333
EAN	5907802043752

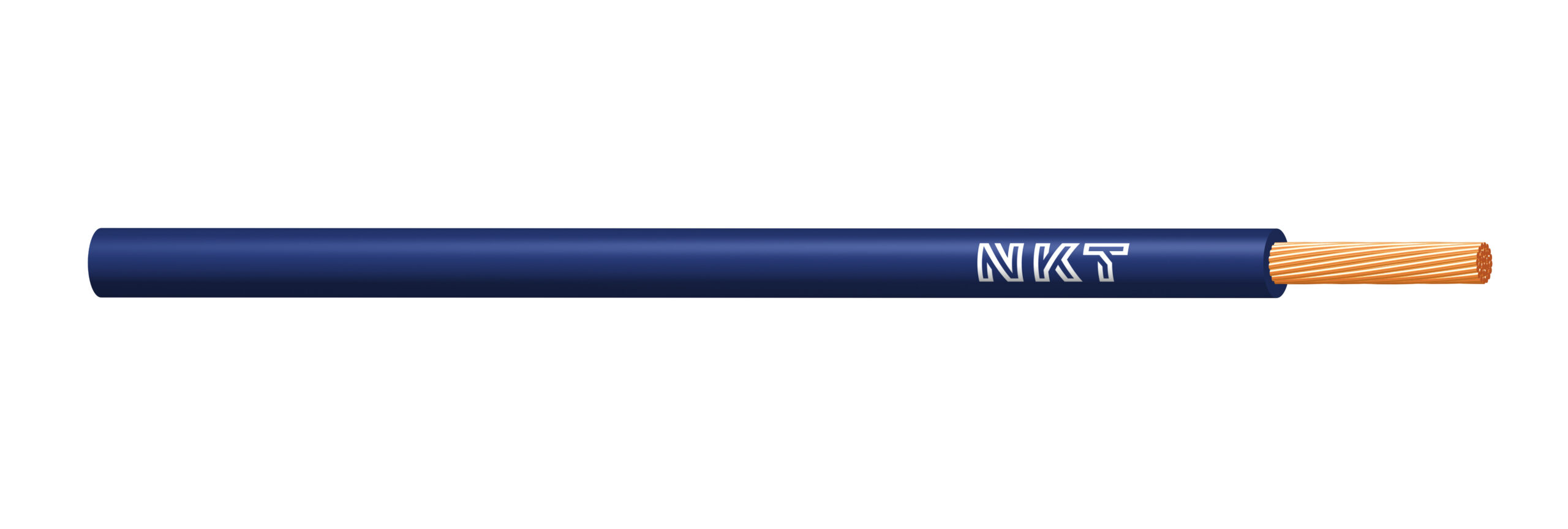

H07V-K LGY 2.5 BLUE SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V CL.5
