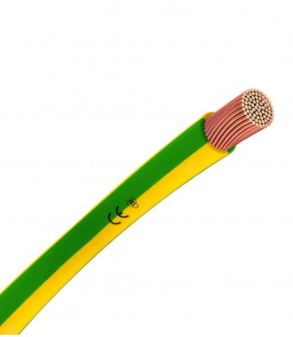

H07V-K LGY 50.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5

Name: H07V-K LGY 50.0 ŻO SINGLE CONDUCTOR FLEXIBLE CABLE 450/750V DRUM CL.5
Brand: TELE-FONIKA KABLE
SKU: 053382
Availability: InStock

6905,14 € VAT incl.

VAT incl. (21%)

Part No: G-106093

Brand: TELE-FONIKA KABLE

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

00093/C PRZEWÓD LGY 50 ŻO G-006093 M EŁKTRIM

Additional information

Weight	520 kg
Dimensions	900 × 900 × 450 mm
Nominal cross section conductor	50mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Weight	487.321kg/km
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	750V
Shape of conductor	Round
Diameter conductor	9mm
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 5 = flexible
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Green/yellow
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	11.8mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	59mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Conductor resistance at 20 °C	0.386Ω/km
Identification/coding colour core	Other
Brand	TELE-FONIKA KABLE
SKU	053382
EAN	5900424000295
