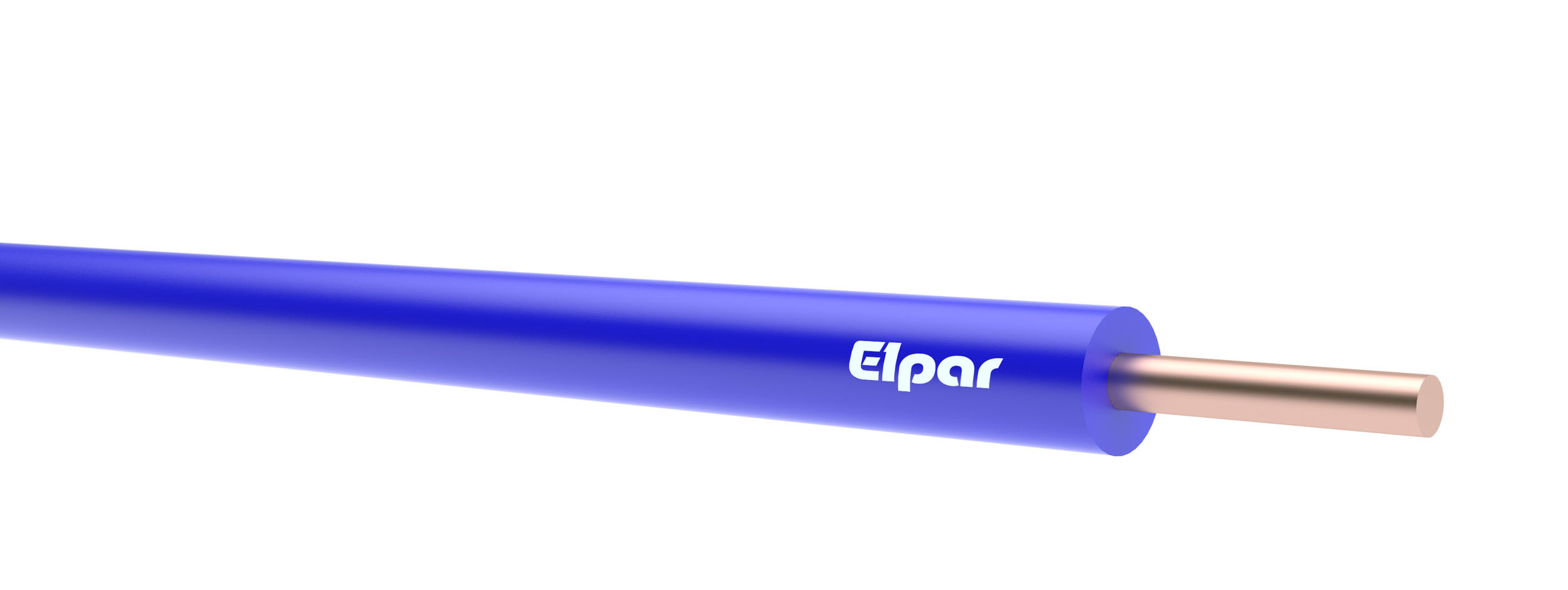

H07V-U DY 10.0 ŻO SINGLE CONDUCTOR WIRE 450/750V CL.1

Name: H07V-U DY 10.0 ŻO SINGLE CONDUCTOR WIRE 450/750V CL.1
Brand: ELPAR
SKU: 3032956
Availability: InStock

1619,17 € VAT incl.

VAT incl. (21%)

Part No: H07V-U-10ŻO DY

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	10 kg
Dimensions	200 × 200 × 120 mm
Nominal cross section conductor	10mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	750V
Colour outer sheath	Other
Shape of conductor	Round
Diameter conductor	5.5mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Several
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	5.5mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	22mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	3032956
EAN	5901854406862
