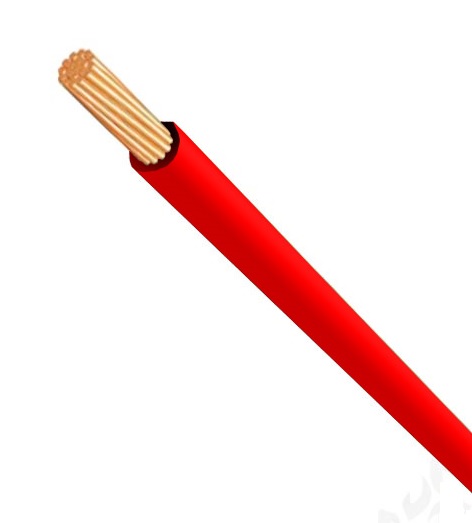

H07V-U DY 2.5 RED SINGLE CONDUCTOR WIRE 450/750V CL.1

Name: H07V-U DY 2.5 RED SINGLE CONDUCTOR WIRE 450/750V CL.1
Brand: TELE-FONIKA KABLE
SKU: 004586
Availability: InStock

378,04 € VAT incl.

VAT incl. (21%)

RRP price: 595,63 €

Part No: G-106316

Brand: TELE-FONIKA KABLE

Delivery time 3-5 working days.

For your home.

Fast support.

Description

KAB0073 Przewód DY 2,5 450/750V czerwony CENTROPOL

Additional information

Weight	31 kg
Dimensions	200 × 200 × 60 mm
Nominal cross section conductor	2.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Weight	31.158kg/km
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	750V
Shape of conductor	Round
Diameter conductor	1.74mm
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Red
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	3.34mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	13.36mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Conductor resistance at 20 °C	7.41Ω/km
Identification/coding colour core	Red
Brand	TELE-FONIKA KABLE
SKU	004586
EAN	5900424003791
