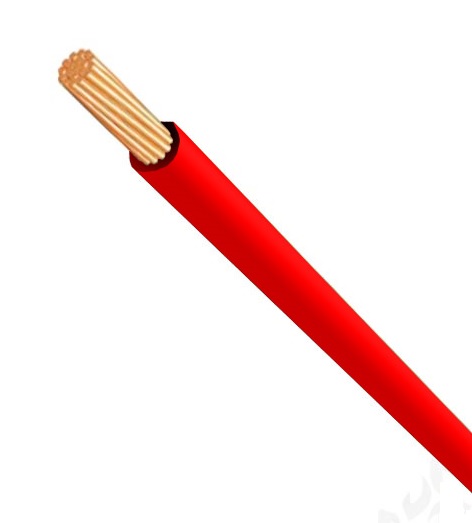

H07V-U DY 4.0 RED SINGLE CONDUCTOR WIRE 450/750V CL.1

Name: H07V-U DY 4.0 RED SINGLE CONDUCTOR WIRE 450/750V CL.1
Brand: TELE-FONIKA KABLE
SKU: 004597
Availability: InStock

474,17 € VAT incl.

VAT incl. (21%)

Part No: G-106321

Brand: TELE-FONIKA KABLE

Delivery time 3-5 working days.

For your home.

Fast support.

Description

KAB0087 Przewód DY 4 450/750V czerwony CENTROPOL

Additional information

Weight	45 kg
Dimensions	1000 × 3 × 3 mm
Nominal cross section conductor	4mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	None
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	750V
Diameter conductor	2.2mm
Conductor material	Copper
Material outer sheath	None
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-15°C
Permitted cable outer temperature after assembling without vibration	-40°C
Core colour	Red
Nominal voltage U0	450V
Number of cores	1
Max. conductor temperature	70°C
Protective barrier	None
Outer diameter approx.	3.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	14.8mm
Specification core insulation	Other
Specification material outer sheath	Other
Brand	TELE-FONIKA KABLE
SKU	004597
EAN	5907802001516
